Finish Thompson

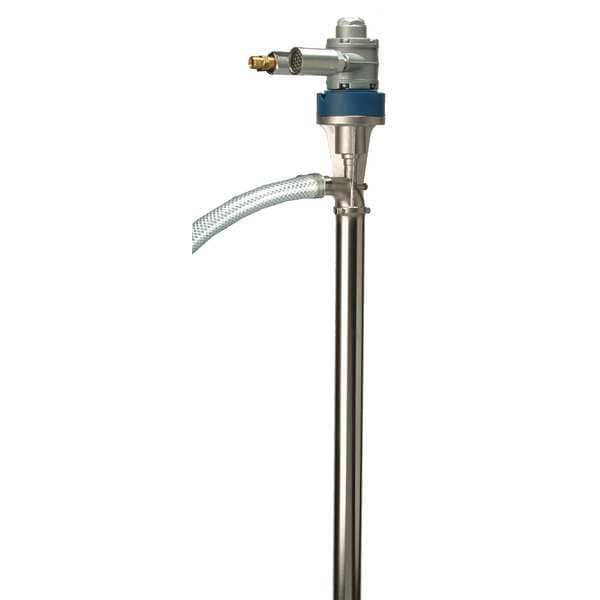

Air Operated Drum Pump, 1/2 HP

product price: $1,319.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Suction Tube Length 40 in
  • Action Type Piston
  • For Media Type Acetic Acid, Ammonia, Ammonium Hydroxide, Antifreeze, Biodiesel, Calcium Chloride, Chromic Acid, Citric Acid, Cyclohexane, Diesel Fuel, E85, Ethanol, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formic Acid, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oil, Hydrazine, Isopropanol, Kerosene, Ketones, Lacquer Thinners, Methanol, Nitric Acid, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Stoddard Solvent, Toluene, Trichlorethylene, Water, Xylene
  • For Container Size 55 gal
  • Max. Flow Rate 15 gpm
See all product information

Product Information

Dimensions

Suction Tube Length 40 in
For Container Size 55 gal
Air Inlet Size 1/4 in MNPT
Discharge Tube Length 5 ft.
Discharge Tube Outlet OD Size 1"
Outlet Size 3/4" Barb
Inlet Size 1-1/4"
Hose Length 60 in
Manufacturers Warranty Length 1 yr.
Discharge Tube Outlet ID Size 3/4"
Suction Tube Outlet O.D. Size 1-1/4"
Overall Length 46 7/8 in
Hose Inside Dia. 3/4 in
Air Outlet Size 1/4 in
Hose Outside Dia. 1 in
Height Above Container 6 7/8 in

Details

Action Type Piston
For Media Type Acetic Acid, Ammonia, Ammonium Hydroxide, Antifreeze, Biodiesel, Calcium Chloride, Chromic Acid, Citric Acid, Cyclohexane, Diesel Fuel, E85, Ethanol, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formic Acid, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oil, Hydrazine, Isopropanol, Kerosene, Ketones, Lacquer Thinners, Methanol, Nitric Acid, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Stoddard Solvent, Toluene, Trichlorethylene, Water, Xylene
Max. Flow Rate 15 gpm
Max. Viscosity 300 cps
Wetted Materials 316 Stainless Steel, ETFE, FKM, PTFE
Suction Tube ID 1 1/4 in
Discharge Tube Outlet ID 3/4 in
Max. Fluid Temp. 212 Degrees F
Food Grade No
Includes Clamp, Hose, Motor, Pump
Suction Tube OD 1 1/4 in
Metered No
Discharge Tube Outlet OD 1 in
Includes Suction Tube Yes
Diesel Exhaust Fluid Compatible No
Runs Dry No
For Use With Mild Corrosive Chemicals
Seal Material FKM
Max. Pressure 7.4 psi
Max. Head 17 ft.
Max. Flow GPM 15 gpm
Housing Material 316 Stainless Steel
DEF Compatible No
Max. GPM for Water 15
Max. Liquid Temp. 212 Degrees F
Max. GPM for Oil 7 @ 100 cps
Type Motor and Tube
Motor Enclosure Air
Motor Type Air
Item Air Operated Drum Pump
Max. Air Inlet (PSI) 7.4
Hose Material PVC
Application For Transferring Antifreeze Solvents, Thinners, Automotive Additives, industrial Chemicals, Oil Based Fluids and Other Non Corrosive Fluids
GPM 15
Discharge Tubing Material PVC
Motor RPM 11,000 RPM
Self-Priming Yes
Suction Tube Material Polypropylene
Thermal Protection No
Series EF
Min. Fluid Temp. 0 Degrees F
Housing Material - Pumps 316 Stainless Steel
Noise Level 78 db
Pump Connection ID 1 1/4 in
Compatible Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, Deionized Water, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Formic Acid, Fresh Water, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint Thinner, Phosphoric Acid (40% Solution), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Includes Nozzle No
Motor HP 1/2 hp
Max. Air Pressure 40 psi
Max. Oil Flow 7 gpm @ 100 cps
Power Source Air
Hose Tube Material PVC
Not Recommended Chemicals DEF, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Potassium Hydroxide (50%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%)
Max. Head Pressure 7.4 psi
Variable Speed Yes
Includes Discharge Hose Yes
Discharge Connection Type Hose Barb
Duty Cycle Continuous
Pump Connection OD 1 1/4 in
Includes Spout No
Min. Air Pressure 40 psi
For Container Type Drum
Includes Bung Adapter No
Gear Lube NT
Grease NT
Explosion Proof Yes
Max. Head - Pumps 17 ft
Max. Outlet Pressure 7.4 psi

Description

Air Operated Drum Pump, Max. Air Pressure 40 psi, Suction Tube Material Polypropylene, Self-Priming Yes, Overall Length 46 7/8 in, Explosion Proof Yes, Discharge Connection Type Hose Barb, Food Grade No, Thermal Protection No, Air Outlet Size 1/4 in, Hose Length 60 in, Motor HP 1/2 hp, Variable Speed Yes, Includes Discharge Hose Yes, Motor Enclosure Air, Noise Level 78 db, Max. Viscosity 300 cps, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter No, Includes Nozzle No

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
