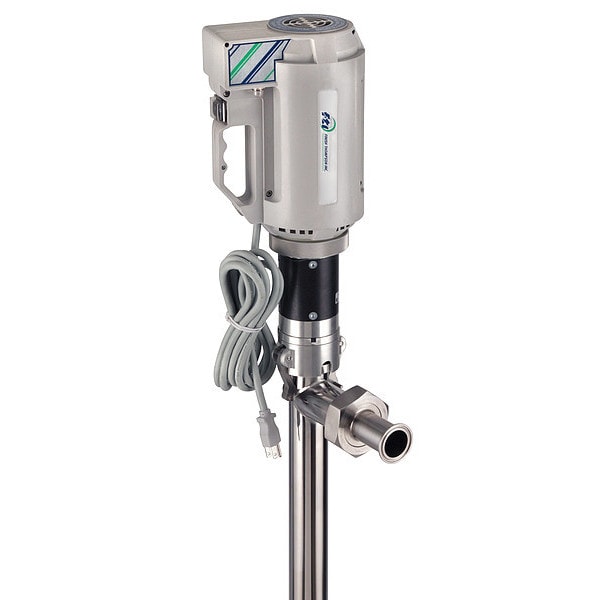

Finish Thompson Drum Pump, 115VAC, 1 HP, 60 Hz HVDP & M58H - main

Drum Pump, 115VAC, 1 HP, 60 Hz

  • Mfr # HVDP & M58H

  • Zoro # G2571917

product price: $5,426.99
/ea
Free Shipping & Returns

Key Features

For Use With
Colorants., Food Ingredients, Pharmaceuticals
Includes
Motor and Pump
Max. Viscosity
20,000 cps
Motor Type
Universal AC/DC
Power Source
Electric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HVDP & M58H
Zoro #
G2571917
UPC #
-
Country of Origin
United States

Dimensions

Outlet Size
1-1/2" Tri-Clamp
Inlet Size
2"
Discharge Tube Outlet ID Size
1-1/2"
Suction Tube Outlet O.D. Size
2"
Overall Length
57 7/8 in
Manufacturers Warranty Length
1 yr.
Hose Length
60 in
Bung Connection Dia.
2 in
Hose Inside Dia.
1 1/2 in
Hose Outside Dia.
1 7/8 in
For Container Size
55 gal
Cord Length
12 ft
Suction Tube Length
40 in

Details

For Use With
Colorants., Food Ingredients, Pharmaceuticals
Item
Electric Operated Drum Pump
Includes
Motor and Pump
Max. Viscosity
20,000 cps
Motor Type
Universal AC/DC
Power Source
Electric
Wetted Materials
316 Stainless Steel, Buna
Voltage
115VAC
Motor Enclosure
TEFC
Metered
No
Motor RPM
10,000 RPM
Phase
1
HP
1
Adapter Material
316 Stainless Steel
Max. Head
300 ft.
Gasket Material
Buna-N
GPM
3.5 to 8.5
Max. GPM for Water
8.5
pH Range
6 to 10
Pump Body Material
316 Stainless Steel
Type
Motor and Tube
Agency Compliance
FDA Compliant
DEF Compatible
No
Adapter Type
Bung
Seal Material
Buna-N, Carbon, Ceramic
RPM
10,000
Max. GPM for Oil
8.5 @ 100 CPS
Max. Temp.
180¿F
Action Type
Piston
Hz
60
Standards
FDA Compliant
Max. Pressure
130 psi
Application
Food Ingredients, Pharmaceuticals, Colorants.
Max. Liquid Temp.
180F
Housing Material
316 Stainless Steel
Self-Priming
Yes
Diesel Exhaust Fluid Compatible
No
Thermal Protection
No
Suction Tube OD
2 in
Compatible Chemicals
Acetic Acid 20%, Antifreeze (Coolant), Automatic Transmission Fluid, Brake Fluid, Calcium Chloride, Citric Acid 50%, Deionized Water, Ethylene Glycol, Fresh Water, Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Trichlorethylene (50%)
Min. Fluid Temp.
-20 Degrees F
Includes Discharge Hose
Yes
Discharge Connection Type
Tri-Clamp
Runs Dry
No
Motor HP
1 hp
Food Grade
No
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Biodiesel, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint Thinner, Phosphoric Acid (40% Solution), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Turpentine, Windshield Washer Fluid, Xylene
For Media Type
Acetic Acid, Antifreeze, Automatic Transmission Fluid, Brake Fluid, Calcium Chloride, Citric Acid, Ethylene Glycol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Trichlorethylene, Water
Discharge Tube Outlet OD
1 7/8 in
Frequency (Hz)
60 Hz
Discharge Tube Outlet ID
1 1/2 in
Suction Tube Material
316 Stainless Steel
Includes Bung Adapter
No
Max. Flow Rate
8.5 gpm
Duty Cycle
Continuous
Noise Level
81 db
Max. Head - Pumps
300 ft
Plug Type
NEMA 5-15
Max. Fluid Temp.
180 Degrees F
Max. Head Pressure
120 psi
Series
HVDP
Includes Nozzle
No
Pump Connection Type
Smooth Bore
Suction Tube ID
2 in
Hose Tube Material
PVC
For Container Type
Drum
Housing Material - Pumps
316 Stainless Steel
Variable Speed
Yes
Number of Phases
1
Includes Suction Tube
Yes
Gear Lube
NT
Explosion Proof
No
Grease
NT
Max. Outlet Pressure
120 psi
Rated Voltage
115V AC

Description

Electric Drum Pump, Hose Inside Dia. 1 1/2 in, Max. Head Pressure 120 psi, Max. Outlet Pressure 120 psi, For Use With Colorants., Food Ingredients, Pharmaceuticals, Rated Voltage 115 V AC, Plug Type NEMA 5-15, Pump Connection ID 2 in, Suction Tube OD 2 in, Hose Length Not Applicable, Suction Tube Length 40 in, Cord Length 12 ft, Includes Bung Adapter No, Runs Dry No, Nozzle Operation Not Applicable, Thermal Protection No, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed Yes
