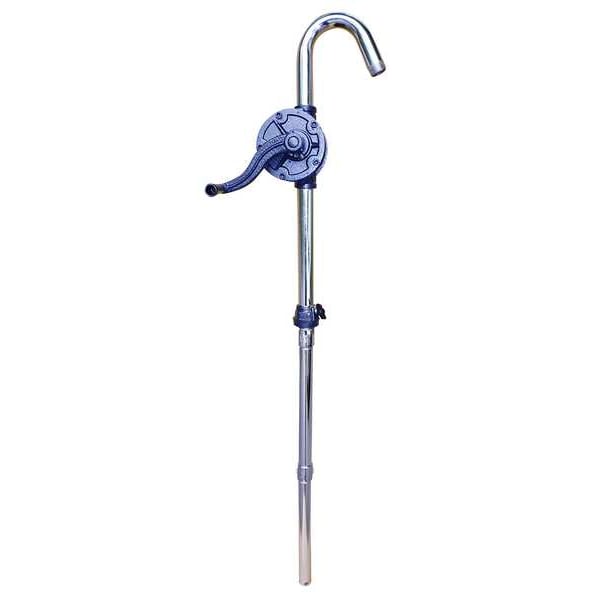

Hand Drum Pump, Cast Iron, 1-1/4In OD

DAYTON| Zoro #: G1223643| Mfr #: 4HA38

$99.30 /ea

This item ships free. Details.Standard ground shipping.
Details:
Discharge Tube Length: 14-1/4"
Suction Tube Length: 40"
Suction Tube Outlet O.D. Size: 1-1/4"
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1223643 Mfr #: 4HA38
Discharge Tube Length: 14-1/4"Suction Tube Length: 40"
Suction Tube Outlet O.D. Size: 1-1/4"Wetted Materials: Steel, Cast Iron, Buna
Discharge Tube Outlet OD Size: 1-1/4"Suction Tube Type: 3-Piece Tube
Item: Hand Operated Drum PumpAction Type: Rotary
Discharge Tubing Material: SteelSelf-Priming: Yes
Max. Viscosity: 2000 SSUAdapter Material: Cast Iron
Includes: Suction Tube and Curved Discharge SpoutDischarge Tube Outlet ID Size: 1-1/16"
Adapter Dia.: 2"Housing Material: Cast iron
Max. Liquid Temp.: 140 Degrees FOunces per Stroke: 15 GPM @ 135 RPM
Adapter Type: 2" BungOutlet Size: 1-1/4" OD
For Use With: Lubricating Oils, Fuel Oils, AntifreezeInlet Size: 1" FNPT
Country of Origin (subject to change): Taiwan, Province of China

Description

Hand Operated Drum Pump, Action Type Rotary, RPM 135, Pump Body Material Cast Iron, Wetted Materials Steel, Cast Iron, Buna, pH Range -, Seal Material Buna-N, Discharge Tubing Material Steel, For Use On 15, 30, 55 gal. Drums, GPM 15 GPM @ 135 RPM, Max. Temp. 140 Degrees F, Max. Viscosity 2000 SSU, Inlet Size 1 In. FNPT, Outlet Size 1-1/4 In. OD, Discharge Tube Outlet ID Size 1-1/16 In., Discharge Tube Outlet OD Size 1-1/4 In., Discharge Tube Length 14-1/4 In., Suction Tube Length 40 In.
