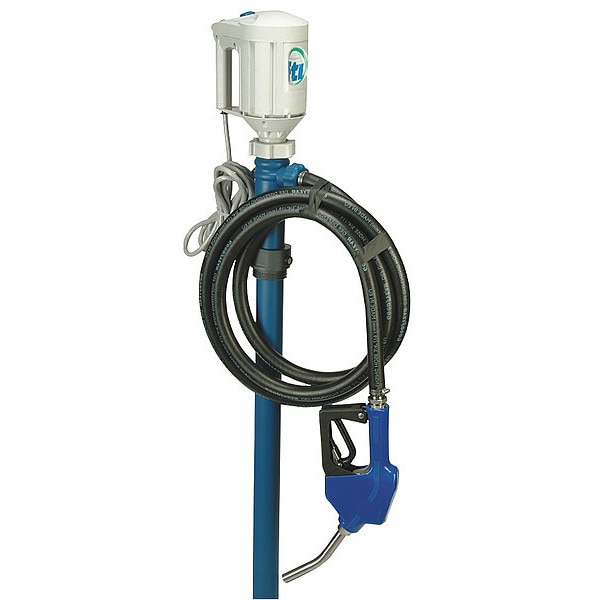

Drum Pump, 115VAC, 1/3 HP, 60 Hz

Drum Pump, 115VAC, 1/3 HP, 60 Hz

Mfr # EFP-54/S1
Zoro # G7045586

$1,149.99

Free Shipping & Returns

Key Features

For Use With

Diesel Exhaust Fluid

Includes

Adapter and Nozzle, Clamp, Hose, Motor, Pump

Max. Viscosity

300 cps

Motor Type

Universal AC/DC

Power Source

Electric

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

EFP-54/S1

Zoro #

G7045586

UPC #

Country of Origin

United States

Dimensions

Outlet Size

3/4" Barb

Hose Length

96 in

Manufacturers Warranty Length

1 yr.

Discharge Tube Outlet OD Size

1-1/8"

Overall Length

48 5/8 in

Suction Tube Length

54 in

Inlet Size

1-1/4"

Discharge Tube Outlet ID Size

3/4"

Suction Tube Outlet O.D. Size

1-1/4"

Discharge Tube Length

8 ft.

Hose Outside Dia.

1 in

For Container Size

275 gal

Cord Length

12 ft

Bung Connection Dia.

2 in

Height Above Container

8 5/8 in

Hose Inside Dia.

3/4 in

Details

For Use With

Diesel Exhaust Fluid

Item

Electric Operated Drum Pump

Includes

Adapter and Nozzle, Clamp, Hose, Motor, Pump

Max. Viscosity

300 cps

Motor Type

Universal AC/DC

Power Source

Electric

Wetted Materials

316 Stainless Steel, FKM, Polypropylene, PTFE

Voltage

115VAC

Motor Enclosure

ODP

Metered

Max. Flow GPM

17 gpm

Motor RPM

8000 to 14,000

Action Type

Piston

GPM

Max. Pressure

8.7 psi

Standards

CSA Certified

Hose Material

EPDM

Phase

Max. Head

20 ft.

Discharge Tubing Material

EPDM

DEF Compatible

Yes

Suction Tube Type

Constant

Max. Liquid Temp.

150 Degrees F

Type

Motor and Tube

Application

Light Acids and Bases, Solvents, Plating, Solutions, Sodium Hypochlorite, Cleaners, Coolants, Diesel Exhaust Fluid

pH Range

6 to 10

Seal Material

FKM

Adapter Type

Sealed

Pump Body Material

Polypropylene

Housing Material

Polypropylene

Max. GPM for Water

1/3

Max. Temp.

150 Degrees F

RPM

8000 to 14,000

Adapter Material

PVC

Agency Compliance

CSA, ISO 22241-3 (Purity Standard)

Max. GPM for Oil

7 @ 100 cps

Frequency (Hz)

60 Hz

Pump Connection OD

2 in

Discharge Tube Outlet OD

1 in

Hose Tube Material

EPDM

Includes Bung Adapter

Yes

Includes Suction Tube

Yes

Discharge Tube Outlet ID

3/4 in

Max. Head - Pumps

20 ft

Noise Level

74 db

Food Grade

Min. Fluid Temp.

0 Degrees F

Compatible Chemicals

Acetic Acid 20%, Acetic Acid 80%, Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Citric Acid 50%, Deionized Water, Ethylene Glycol, Formic Acid, Fresh Water, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%)

Full Load Amps

2.0 A

Nozzle Operation

Automatic

Variable Speed

Yes

Discharge Connection Type

Hose Barb

Runs Dry

Pump Connection ID

1 1/4 in

Motor HP

1/3 hp

Plug Type

NEMA 5-15

Self-Priming

Yes

Not Recommended Chemicals

Acetic Acid (Glacial), Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, DEF, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Gasoline, Glycerin, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint Thinner, Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene

Diesel Exhaust Fluid Compatible

Pump Connection Type

Smooth Bore

Includes Discharge Hose

Yes

Includes Nozzle

Yes

Series

Duty Cycle

Continuous

Thermal Protection

Max. Fluid Temp.

150 Degrees F

For Media Type

Acetic Acid, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, Ethylene Glycol, Formic Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Water

Max. Flow Rate

17 gpm

Number of Phases

Housing Material - Pumps

Polypropylene

For Container Type

Tote

Suction Tube ID

1 1/4 in

Suction Tube Material

Polypropylene

Max. Head Pressure

8.7 psi

Suction Tube OD

1 1/4 in

Nozzle Material

FKM, Polypropylene, Stainless Steel

Gear Lube

Adapter Connection Type

Buttress

Max. Outlet Pressure

8.7 psi

Rated Voltage

115V AC

Grease

Explosion Proof

Description

Electric Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 8.7 psi, Max. Outlet Pressure 8.7 psi, For Use With Diesel Exhaust Fluid, Rated Voltage 115 V AC, Plug Type NEMA 5-15, Pump Connection ID 1 1/4 in, Suction Tube OD 1 1/4 in, Hose Length 8 ft, Suction Tube Length 54 in, Cord Length 12 ft, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Manual, Thermal Protection No, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes
