Shop FILL-RITE

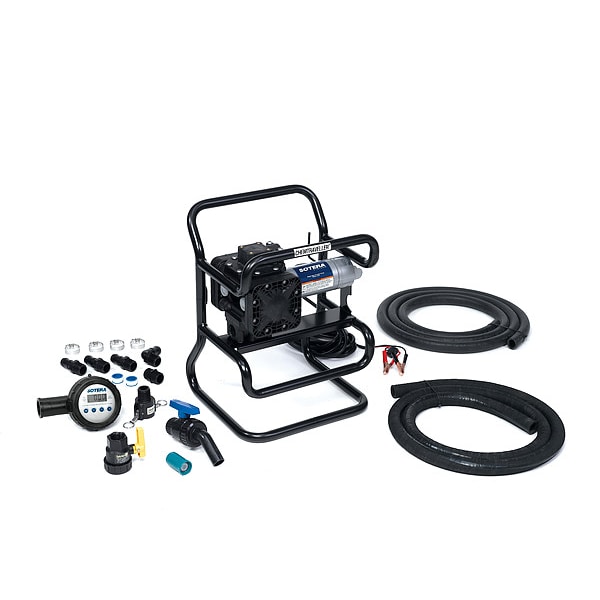

Fuel Transfer Pump, 12V DC, 13 gpm Max. Flow Rate , 1/4 HP, Polypropylene, 1 in NPT Inlet

  • Mfr # SS435BX675

  • Zoro # G4316061

product price:
$
1,506.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
Application
Agricultural; Industrial Chemicals and Lubricants
HP
1/4
Housing Material
Polypropylene
GPM
13 gpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SS435BX675
Zoro #
G4316061
UPC #
089404213452
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Overall Height
6 1/4 in
Pump Mount Size
2 in
Hose Length
12 ft
Hose Dia.
1 in
Overall Width
14 in
Overall Length
8 3/4 in
Manufacturers Warranty Length
5 yr
Outlet Size
1 in NPT
Power Cord Length
20 ft
Cord Length
20 ft
Suction Tube Length
108 in
Hose Outside Dia.
1 in
Hose Inside Diameter
1 in
For Container Size
55 gal, 350 gal
Adapter Connection Diameter
2 in
Hose Outside Diameter
1 3/8 in
Wire Rope Length
8 3/4 in
Length
8 3/4 in

Details

Voltage
12V DC
Application
Agricultural; Industrial Chemicals and Lubricants
HP
1/4
Housing Material
Polypropylene
GPM
13 gpm
Seal Material
EPDM
RPM
2600
Pump Design
Santoprene Diaphragm
Self-Priming
No
Seal Type
O-ring
Max. Viscosity
30 SUS
Item
Electric Drum Pump
For Use With
Fertilizers, Mild Acid, Pesticides, Water
Bypass Valve
No
Nozzle Material
Polypropylene
Bearing Type
Ball
Includes
Fittings, Anti-Drip Nozzle Tip
Nozzle Type
Manual
Pressure Range
15 psi
Features
Automatically Goes Neutral, Glass-Reinforced Polypropylene Pump Housing, Spring Driven Configuration
Metered
Yes
Transfer Pump Application
Agriculture, Construction, Farming
Duty Cycle
30 Minutes On/30 Minutes Off
Compatible Fluids
Fertilizers, Mild Acid, Pesticides, Water
Motor Type
Permanent Magnet
Motor RPM
2,600 RPM
Housing Material - Pumps
Polypropylene
Meter Type
Digital
Includes Suction Tube
Yes
Includes Discharge Hose
Yes
For Media Type
Fertilizers, Herbicides, Mild Acid, Pesticides, Water
Hose Tube Material
EPDM
Compatible Chemicals
Fertilizers, Herbicides, Mild Acid, Pesticides, Water
Power Source
Corded Electric
Suction Tube Material
EPDM
Max. Flow Rate
13 gpm
Thermal Protection
Yes
Nozzle Operation
Manual
Max. Outlet Pressure
15 psi
Rated Voltage
12 V DC
Includes Nozzle
Yes
Motor HP
1/4 hp
Suction Tube ID
1 in
Meter Unit Of Measure
Gallons, Liters, Pints
Maximum Fluid Temperature
150 Degrees F
Container Cover Type Included
No Cover Included
Pump Connection ID
1 in
Includes Follower Plate
No Follower Plate Included
Suction Tube OD
1 3/8 in
Maximum Viscosity
30 SUS
Maximum Flow Rate
13 gpm
Includes Spout
Yes
For Container Type
Drum, Tote
Chemical Compatibility
Fertilizers, Herbicides, Pesticides, Water
Maximum Outlet Pressure
15 psi
Wetted Material
Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton
Hose Cover Material
EPDM
Includes Bung Adapter
Yes
Pump Connection OD
1 3/8 in
Adapter Connection Standard
MNPT
Maximum Head
37 ft
Static Protection
No Grounding Line Included
Meter Type Included
Digital
Motor Speed
2,600 RPM
Minimum Fluid Temperature
-40 Degrees F
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Pump Technology
Diaphragm
Motor Horsepower
1/4 hp
Variable Speed
No
Container Type Included
Drum
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Max. Outlet Pressure 15 psi, For Use With Fertilizers, Mild Acid, Pesticides, Water, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD 1 3/8 in, Hose Length 12 ft, Suction Tube Length 108 in, Cord Length 20 ft, Includes Bung Adapter Yes, Nozzle Operation Manual, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming No
