Finish Thompson

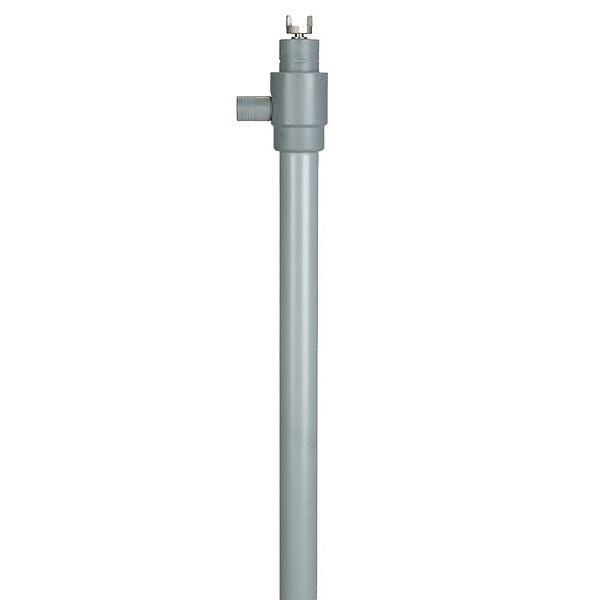

Drum Pump Tube, Suction Tube 40 L

product price: $813.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • For Use With TT
  • Suction Tube Length 40 in
  • Adapter Material Polypropylene
  • Outlet Size 1 in Barb
  • Height 40"
See all product information

Product Information

Dimensions

Suction Tube Length 40 in
Outlet Size 1 in Barb
Height 40"
Discharge Tube Outlet OD Size 1-7/16"
Overall Length 50 in
Discharge Tube Outlet ID Size 1"
For Container Size 55 gal, 275 gal

Details

Item Drum Pump Tube
For Use With TT
Adapter Material Polypropylene
Agency Compliance No
Self-Priming Yes
Suction Tube Type Constant
Seal Material PTFE
Max. Viscosity 2000 CPS
Wetted Materials CPVC, PTFE, Alloy 625
Max. Head 70 ft
Compatible Chemicals Acetic Acid 20%, Acetic Acid 80%, Chromic Acid 5%, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 50%, Citric Acid 50%, Formic Acid, Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (to 10%), Sulfuric Acid (10% - 75%), Antifreeze (Coolant), Ethylene Glycol, Calcium Chloride, Sodium Bicarbonate (10%), Ammonium Hydroxide, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Potassium Hydroxide (50%), Fresh Water, Salt Water, Deionized Water, Sodium Bisulfate, Sodium Bisulfite
Food Grade No
Discharge Connection Type Hose Barb
Min. Fluid Temp. 34 Degrees F
Suction Tube OD 1 3/16 in
Suction Tube ID 1 5/8 in
For Media Type Acetic Acid, Chromic Acid, Citric Acid, Formic Acid, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Sulfuric Acid, Antifreeze, Ethylene Glycol, Calcium Chloride, Sodium Bicarbonate, Ammonium Hydroxide, Sodium Hydroxide, Bleach, Potassium Hydroxide (50%), Water, Sodium Bisulfate, Sodium Bisulfite
Discharge Tube Outlet ID 1 in
Not Recommended Chemicals Acetic Acid (Glacial), Hydrochloric/Muriatic Acid (37%), Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Nitric Acid (Concentrated Solution), Sulfuric Acid (75% - 100%), Acetone, Methyl Ethyl Ketone (MEK), Ethyl (Ethanol), Isopropyl (Isopropanol), Methyl (Methanol), Glycerin, Cyclohexane, Gasoline, Heptane, Hexane, Kerosene, Stoddard Solvent (Mineral Spirits), Diesel Fuel, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Ethyl Acetate, Biodiesel, Formaldehyde 40%, Formaldehyde, Hydrazine, Lacquer Thinners, Toluene, Xylene, Trichlorethylene (50%), DEF, E85, Anhydrous Ammonia, Ammonia (Liquids), Automatic Transmission Fluid, Brake Fluid, Naphtha, Paint Thinner, Turpentine, Windshield Washer Fluid
Max. Head Pressure 30.3 psi
Discharge Tube Outlet OD 1 7/16 in
For Container Type Drum, Tote
Series TT
Diesel Exhaust Fluid Compatible No
Max. Flow Rate 16 gpm
Suction Tube Material CPVC
Runs Dry No
Max. Fluid Temp. 150 Degrees F
Grease NT
Gear Lube NT

Description

Drum Pump Tube, Suction Tube Length 40 in, Pump Package Type Drum Pump Tube, Suction Tube Material CPVC, Suction Tube ID 1 5/8 in, Suction Tube OD 1 3/16 in, Discharge Tube Outlet ID 1 in, Discharge Tube Outlet OD 1 7/16 in, Discharge Connection Type Hose Barb, Overall Length 50 in, For Container Size 55 gal, 275 gal, For Container Type Drum, Tote, Max. Flow Rate 16 gpm, Max. Viscosity 2000 CPS, Min. Fluid Temp. 34 Degrees F, Max. Fluid Temp. 150 Degrees F, Max. Head 70 ft
