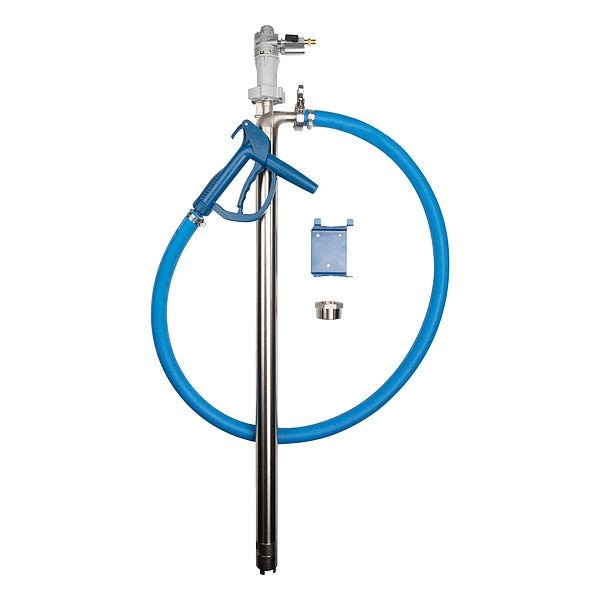

Air Drum Pump Kit, 22 gpm, 16.5 psi

  • Mfr # PFP-48 & M6 Kit

  • Zoro # G921668416

product price:  $1,076.99
/ea
Free Shipping & Returns

Key Features

Motor Speed
9,000 RPM
Includes
Clamp, Hose, Motor, Mount, Pump
Maximum Air Pressure
80 psi
Includes Bung Adapter
Yes
Air Inlet Connection Size
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PFP-48 & M6 Kit
Zoro #
G921668416
UPC #
-
Country of Origin
United States

Dimensions

Air Inlet Connection Size
1/4 in
Air Outlet Size
1/4 in
Hose Length
72 in
Spout Length
1 in
Suction Tube Length
48 in
For Container Size
275 gal
Spout Connection Size
1 in
Adapter Connection Diameter
2 in
Hose Inside Diameter
1 in

Details

Motor Speed
9,000 RPM
Includes
Clamp, Hose, Motor, Mount, Pump
Maximum Air Pressure
80 psi
Includes Bung Adapter
Yes
Meter Type Included
No Meter Included
Standards
CE
Chemical Compatibility
Includes Nozzle
Yes
Suction Tube Material
Polypropylene
Duty Cycle
Continuous
Discharge Tube Outlet OD
1 1/4 in
Mounting Bracket Included
Wall Mounting Bracket
Includes Suction Tube
Yes
Discharge Connection Type
Hose Barb
For Container Type
Tote
Air Inlet Connection Type
MNPT
Maximum Viscosity
330 cps
Wetted Material
Alloy 625/FKM/PP/PTFE/PVDF
Includes Discharge Hose
Yes
Suction Tube OD
2 in
Power Source - TS Only
Air
Adapter Connection Standard
Smooth Bore
Discharge Tube Outlet ID
1 in
Housing Material
Polypropylene
Maximum Flow Rate
22 gpm
Minimum Air Pressure
80 psi
Static Protection
Not Groundable
Minimum Fluid Temperature
35 Degrees F
Includes Follower Plate
No Follower Plate Included
Adapter Material
Polypropylene
Nozzle Operation
Manual
Nozzle Material
Polypropylene/FKM
Spout Material
Polypropylene
Spout Connection Type
Hose Barb
Thermal Protection
No
Motor Horsepower
1/2 hp
Maximum Head
38 ft
Noise Level
78 dB
Maximum Head Pressure
16.5 psi
Maximum Fluid Temperature
160 Degrees F
Maximum Outlet Pressure
16.5 psi
Includes Spout
Yes
Hazardous Location Class
Not Rated
Pump Technology
Centrifugal
Hose Cover Material
PVC
Hose Tube Material
PVC
Container Cover Type Included
No Cover Included
Item
Air Drum Pump Kit
Suction Tube ID
2 in
Variable Speed
Yes
Air Consumption
32 cfm
Power Source
Air

Description

Air Drum Pump Kit, Spout Connection Size 1 in, Suction Tube Material Polypropylene, Discharge Connection Type Hose Barb, Spout Length 1 in, Thermal Protection No, Air Outlet Size 1/4 in, Air Consumption 32 cfm, Hose Length 72 in, Variable Speed Yes, Includes Discharge Hose Yes, Noise Level 78 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle Yes, Includes Spout Yes, Adapter Material Polypropylene
