  5. IR Cam, 320x240IR Res, 24x18FOV
No Product Image Available

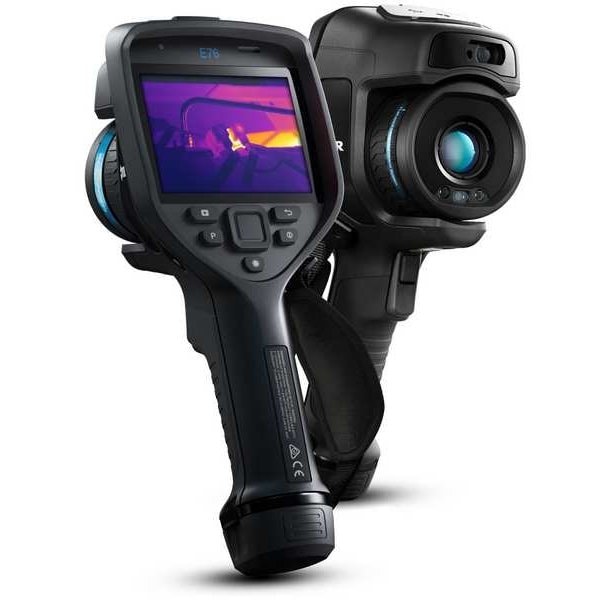

IR Cam, 320x240IR Res, 24x18FOV

  • Mfr # FLIR E76-24-42

  • Zoro # G501006980

product price:  $14,296.99
/ea
Free Shipping & Returns

Key Features

Thermal and Visible Light Blending
Yes
Detector Resolution - Infrared
320 × 240 px
Standards
EN/UL/CSA/PSE 60950-1
Focus Distance - Infrared
Minimum 0.15 m
Image Notation
Text, Voice
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FLIR E76-24-42
Zoro #
G501006980
UPC #
845188022631
Country of Origin
Estonia

Dimensions

Manufacturers Warranty Length
2 yr Parts and Labor
Manufacturer Warranty Length
1 yr
Display Size
4 in

Details

Thermal and Visible Light Blending
Yes
Detector Resolution - Infrared
320 × 240 px
Standards
EN/UL/CSA/PSE 60950-1
Focus Distance - Infrared
Minimum 0.15 m
Image Notation
Text, Voice
Laser Sighting
Yes
Item - Infrared Camera
Infrared Camera
Item
Infrared Camera
Multiple Lens Option
Yes
Focus Method
Auto, Manual
Temp. Accuracy (F) - Infrared
+/-3.6 Degrees For +/-2% of the Reading
Included Charger
627L67
NIST Certified
No
Articulating Lens
No
Field of View - IR Camera
24 Degrees Horizontal × 18 Degrees Vertical, 42 Degrees Horizontal × 32 Degrees Vertical
Alarm
No
Ambient Temp. Range
5 Degrees to 122 Degrees F
Temp. Accuracy (C) - Infrared
+/-2 Degrees C or +/-2% of the Reading
Frame Rate - IR Camera
30 Hz
Visual Light Resolution
5 MP
Picture In Picture
Yes
Temp. Range (C) - Infrared
-20 to 120 Degrees C, 300 to 1000 Degrees C
Drop Tested
2 m
Includes
Battery Charger, Cables (USB 2.0 A to USB Type-C), Front Lens Cap, Hard Carrying Case, Infrared Camera Lens, Lanyards, License Card Flir Thermal Studio Starter, Power Supply, USB Type-C to HDMI, USB Type-C to USB Type-C
Removable Memory Card
8GB MicroSD
Safety Rating
EN/UL/CSA/PSE 60950-1
Display Resolution - IR Camera
4", 320 × 240 Pixel Touchscreen LCD with Auto-rotation
Emissivity
Adjustable 0.01 to 1.00
Ambient Temp. Range (F)
5 Degrees to 122 Degrees
Special Features
4 in Touchscreen, Built In GPS, Image Sktech, METERLiNK to FLIR Meters, UltraMax (Super-Resolution), Voice Annotations
Spectral Response - Infrared
7.5 to 14 micron m
Thermal Sensitivity - IR Camera
40 mK
Charger Replacement
627L67
Wireless
Yes
Temp. Range (F) - Infrared
-4 to 248 Degrees F, 572 to 1832 Degrees F
Display - IR Camera
4.0 in Touch Screen Color LCD
Data Logging - Instrument
Yes
File Formats
CSQ
Product Type
Infrared Camera
Maximum Emissivity Setting
1.00
Thermal Sensitivity
30 mK
Battery Chemistry
Lithium Ion
Number of Batteries Required
2
Display Resolution
640 x 480
Infrared Resolution
320 x 240
Features
Data Logging, Image Notation, Image Sketching, Multi Spectral Dynamic Imaging (MSX(R))
Data Transfer Type
Wired, Wireless
Series
FLIR Exx
Accuracy Degrees C
+/-2.0% of Reading or +/-2.0 Degrees Whichever is Greater
Minimum Temperature Measured Degrees F
-4 Degrees F
Lens Angles Included
24 Degrees , 42 Degrees
Temperature Alerts
High Temperature, Low Temperature, Normal Body Temperature
Laser Sighting Type
Circular
Frame Rate
30 Hz
Calibration Certificate Type
Available Separately
Emissivity Adjustability
Adjustable
Batteries Included
Yes
Battery Run Time
2.5 hr
Alert Type
Digital Display, Sound
Digital Display Screen Type
LCD Touchscreen
Interface
SD Card, USB, Wireless
Minimum Emissivity Setting
0.01
Maximum Temperature Measured Degrees C
1,500 Degrees C
Intrinsic Safety
Not Specified Intrinsically Safe
Minimum Focus Distance
0.15 m
Accuracy Degrees F
+/-2.0% of Reading or +/-3.6 Degrees F Whichever is Greater
Maximum Operating Temperature Degrees F
122 Degrees F
Field of View
24 Degrees x 18 Degrees
Minimum Temperature Measured Degrees C
-20 Degrees C
Maximum Temperature Measured Degrees F
1,832 Degrees F
Minimum Operating Temperature Degrees F
5 Degrees F
Portability
Handheld

Description

Infrared Camera, Temperature Alerts High Temperature, Low Temperature, Normal Body Temperature, Frame Rate 30 Hz, Visual Light Resolution 5 MP, Calibration Certificate Type Available Separately, Alert Type Digital Display, Sound, Data Transfer Type Wired, Wireless, Digital Display Screen Type LCD Touchscreen, Emissivity Adjustability Adjustable, Maximum Emissivity Setting 1.00, Minimum Emissivity Setting 0.01, Thermal Sensitivity 30 mK, Minimum Focus Distance 0.15 m

Restrictions

Hazardous material
