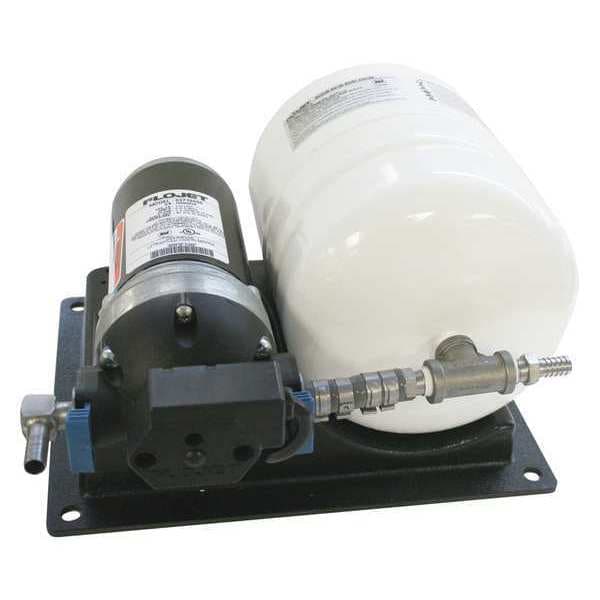

Booster Pump System, Polypropylene, Santoprene, 115, 1.5 GPM

  • Mfr # 028300510

  • Zoro # G4444100


product price: $597.99
/ea
Free Shipping & Returns

Key Features

Item - Industrial Pumps
Complete Water System
Diaphragm Material
Santoprene
Voltage - Pumps
120V AC
Flow Rate (Maximum)
1.5 gpm
Diaphragm Material - Pumps
Santoprene(R)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
028300510
Zoro #
G4444100
UPC #
705474207916
Country of Origin
China

Dimensions

Length
16 1/2 in
Height
10 7/8 in
Width
15 1/2 in
Discharge Connection Size
3/8 in
Overall Width
15.5 in
Overall Length
16.5 in
Intake Connection Size
3/8 in
Overall Height
10.9 in
Discharge Diameter
3/8 in
Inlet Diameter
3/8 in

Details

Item - Industrial Pumps
Complete Water System
Item
Booster Pump System
Diaphragm Material
Santoprene
Voltage - Pumps
120V AC
Flow Rate (Maximum)
1.5 gpm
Diaphragm Material - Pumps
Santoprene(R)
Max. Flow
1.5 gpm
Power Type
Electric
Max. Pressure - Pumps
95 psi
Housing Material - Pumps
Polypropylene
Type
Diaphram
Self-Priming
Yes
Check Valve
EPDM
Inlet/Outlet
3/8 in HB
Pressure Off
87 psi
Pressure On
40 to 60
Max. Operating PSI
87
Voltage
115
Body Material
Polypropylene
Prime in Feet
5
Fuse Amps
1.25 A
Standards
NSF Certified
Flow
1.5 GPM
Includes
1 gal Tank
Max. Flow GPM
1.5
Discharge Connection Type
Barbed
Housing Material
Polypropylene
Operating Pressure (Maximum)
95 psi
Current
1.25 A
Priming
Self-Priming
Intake Connection Type
Barbed
Tank Capacity
4 gal
Nameplate Voltage
120V AC
Check Valve Material
EPDM
Series
2830
Operating Pressure - Maximum
95 psi
Flow Rate - Maximum
1.5 gpm
Pump Casing Material
Polypropylene
Inlet Standard
Barbed
Full Load Current
1.25 A
Discharge Standard
Barbed

Description

Booster Pump System, Discharge Connection Size 3/8 in, Discharge Connection Type Barbed, Flow Rate (Maximum) 1.5 gpm, Housing Material Polypropylene, Includes 1 gal Tank, Intake Connection Size 3/8 in, Intake Connection Type Barbed, Nameplate Voltage 120V AC, Operating Pressure (Maximum) 95 psi, Priming Self-Priming, Tank Capacity 4 gal, Diaphragm Material Santoprene, Check Valve Material EPDM, Standards NSF Certified, Overall Height 10.9 in, Overall Length 16.5 in
