Shop FLOMEC

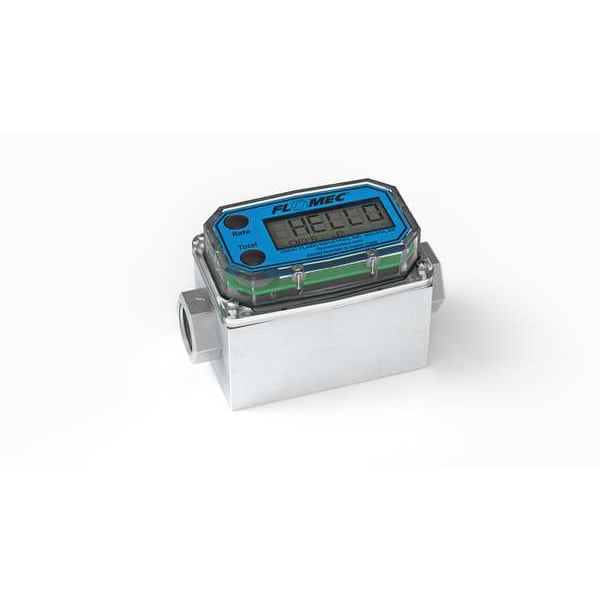

Electronic Flowmeter, 1/2", FNPT, 17" L

  • Mfr # G2A05NQ9GMA

  • Zoro # G500690081

product price:
$
913.00
/ea
Free Shipping & Returns

Key Features

Housing Material
Aluminum
Type
Turbine
For Pipe Size
1/2 in
Flow Material
Fuels, Solvents
Connection Size
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
G2A05NQ9GMA
Zoro #
G500690081
UPC #
-
Country of Origin
United States
Item
Electronic Flowmeter
Housing Material
Aluminum
Type
Turbine
Flow Material
Fuels, Solvents
Connection Type
FNPT
Max. Pressure
300 psi
Max. Viscosity
20 cps
Wetted Materials
316 Aluminum, Alumina Ceramic, PVDF, Stainless Steel, Tungsten Carbide
Frequency Range (Hz)
42 to 420
Flow Range
1 to 10 gpm
Fluid Temp. Range
14 Degrees to 140 Degrees F
Shaft Material
Tungsten Carbide
Accuracy (%)
+/- 1.5
Display Type
Digital
Power Requirement
2-AAA Alkaline Batteries
Flow Range @ GPH
60 to 600
Output Type
4-20 mA
Sensor Type
Turbine
Rotor Type
PVDF Turbine
Flow Range (LPM)
3.8 to 38
Display Units
gal
Flow Range (GPM)
1 to 10
Standards
ATEX, CE Certified, FM Approved, IECE
Flow Rate - Minimum
1 gpm
Accuracy
+/-1.5% (With Computer), +/-2% (Body Only)
Compatible Flow Material
Diesel, Fuels, Petroleum Fluids
Viscosity - Maximum
20 cps
Wetted Material
316 Stainless Steel, Alumina Ceramic, Aluminum, PVDF, Tungsten Carbide
Mounting Orientation
Universal
Flowmeter Type
Turbine
Operating Pressure - Maximum
300 psi
Product Type
Fuel Meter
Media Temperature - Minimum
-40 Degrees F
Flow Rate - Maximum
10 gpm
Rotor Material
PVDF
Media Temperature - Maximum
250 Degrees F
Frequency - Maximum
420 Hz
Frequency - Minimum
42 Hz
Includes Totalizer
Yes
Unit Of Measure
Gallons, Liters

Description

Electronic Flowmeter, Product Type Electronic Meter, Flowmeter Type Turbine, Accuracy +/-1.5 Percent (With Computer), +/-2 Percent (Body Only), Connection Size 1/2 in, Connection Type FNPT, Compatible Flow Material Diesel, Fuels, Petroleum Fluids, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum -40 Degrees F, Viscosity - Maximum 20 cps, Housing Material Aluminum, Rotor Material PVDF, Shaft Material Tungsten Carbide
