  9. Pump, 3/8" NPTF, 78 Max. GPH, Brass
Shop All Rotary Pumps
Fluid-O-Tech

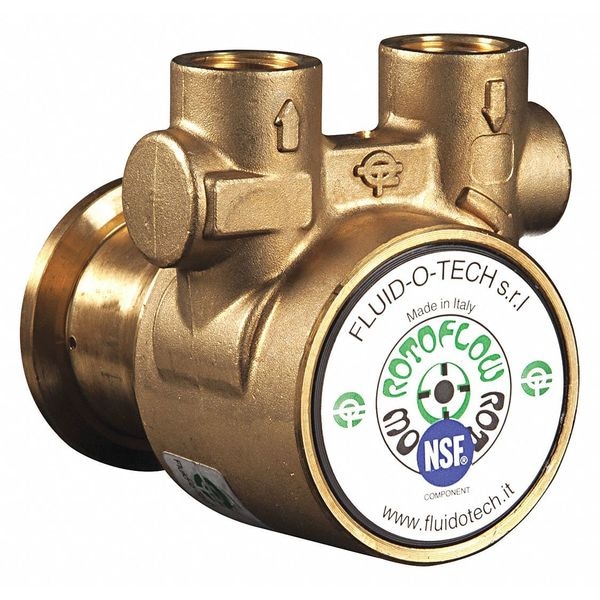

Pump, 3/8" NPTF, 78 Max. GPH, Brass

product price: $110.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • GPH of Water @ 150 PSI 71 gph
  • External Relief Not Required
  • GPH 78 gph
  • Body Material Brass
  • Inlet/Outlet NPTF (In.) 3/8 in
See all product information

Product Information

Dimensions

Media Intake Connection Size 3/8 in
Shaft Outer Diameter 1/8 in
Discharge Connection Size 3/8 in
Manufacturer Warranty Length 15 mo

Details

Item Rotary Vane Pump
GPH of Water @ 150 PSI 71 gph
External Relief Not Required
GPH 78 gph
Body Material Brass
Inlet/Outlet NPTF (In.) 3/8 in
Max. Flow (GPH) 78 gph
Relief Pressure Max. (PSI) 260 psi
Max. Temp. (F) 158 Degrees F
Max. Pressure (PSI) 260 psi
Mounting Carbonator Clamp Style
GPH of Water @ 200 PSI 88 gph
GPH of Water @ 250 PSI 64 gph
By-Pass No
GPH of Water @ 100 PSI 74 gph
Compliance NSF
GPH of Water @ 50 PSI 75 gph
Shaft Stainless Steel
Min. Flow Rate (GPH) 64 gph
Shaft Material Stainless Steel
Vane Material Carbon
Operating Temperature - Minimum 23 Degrees F
Operating Pressure - Maximum 290 psi
Flow Rate @ 200 psi 52 gph
Discharge Connection Type FNPT
Flow Rate - Minimum 50 gph
Feet of Head - Maximum 240 psi
Flow Rate @ 100 psi 58 gph
Media Intake Connection Type FNPT
Flow Rate @ 250 psi 64 gph
Compatible Motor Frame 48Y NEMA, 56C NEMA, M71, M80 IEC
Flow Rate @ 50 psi 58 gph
Flow Rate - Maximum 62 gph
Seal Material Buna-N
Flow Rate @ 150 psi 56 gph
Includes Filter No
For Media Type Moderate Aggressive Liquid, Water
NSF 169 Listed Yes
Operating Temperature - Maximum 158 Degrees F
Standards NSF
Viscosity - Maximum 150 cps

Description

Rotary Vane Pump, Flow Rate - Maximum 62 gph, Feet of Head - Maximum 240 psi, Mounting Type Carbonator Clamp, Compatible Motor Frame 48Y NEMA, 56C NEMA, M71, M80 IEC, Media Intake Connection Size 3/8 in, Media Intake Connection Type FNPT, Discharge Connection Size 3/8 in, Discharge Connection Type FNPT, Vane Material Carbon, Includes Filter No, Filter Rating - Maximum Not Applicable, For Media Type Moderate Aggressive Liquid, Water, NSF 169 Listed Yes, Operating Pressure - Maximum 290 psi

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
