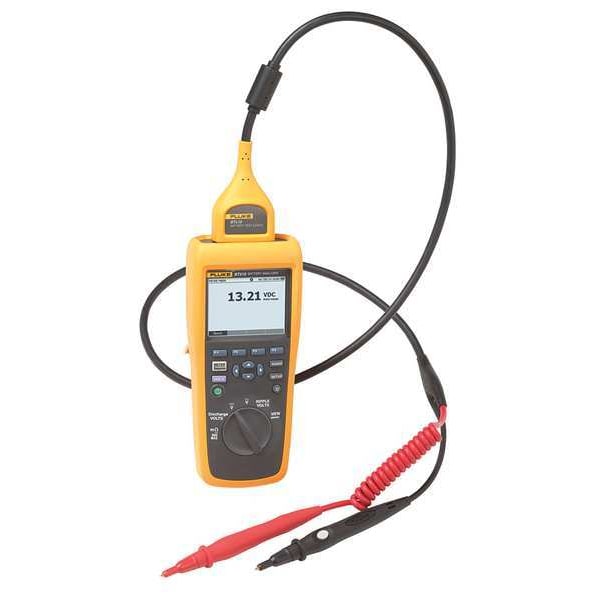

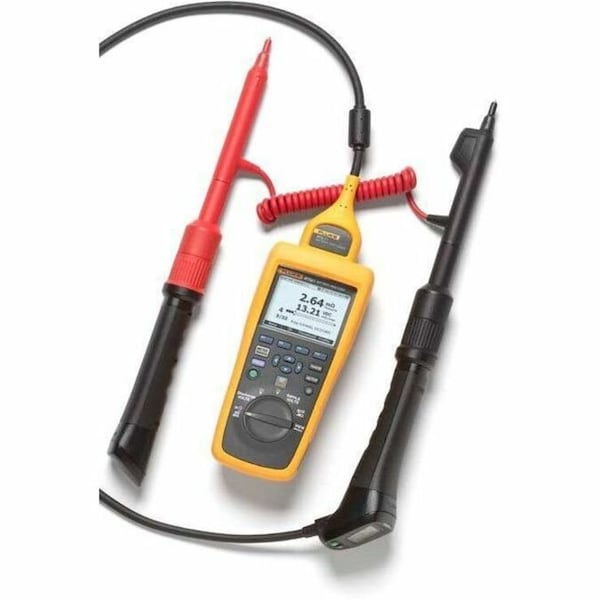

Battery Capacity Analyzer, 600V
Mfr # FLUKE-BT510
Zoro # G9123755
product price: $5,639.99
/ea
Free Shipping & Returns
Key Features
Includes
(2) Spare Fuses, 4-Wire Test Pin Set, BC500 AC Charger, Belt Strap, BTL10 Basic Test Lead (Set), Carrying Case, Magnetic Hanging Strap, Mini-USB Cable, Shoulder Strap, TL175 Twistguard Test Leads with Adapter, Zero Ohm Calibration Resistor
Display
LCD
Works With
Batteries Up to 600V
Accuracy
0.09% + 5 (6 VDC); 0.09% + 5 (60 VDC); 0.09% + 5 (600 VDC); 0.5% + 8 (Frequency); 0.8% + 6 (30 milliohm); 0.8% + 6 (300 milliohm); 0.8% + 6 (3000 milliohm); 1% + 8 (3 milliohm); 2% + 10 (600 VAC); 3% + 10 (AC Voltage Ripple); 3% + 20 (AC Voltage Ripple)
Manufacturers Warranty Length
3 yr
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
FLUKE-BT510
Zoro #
G9123755
UPC #
095969780209
Country of Origin
China
Dimensions
Manufacturers Warranty Length
3 yr
Details
Item
Battery Capacity Analyzer
Includes
(2) Spare Fuses, 4-Wire Test Pin Set, BC500 AC Charger, Belt Strap, BTL10 Basic Test Lead (Set), Carrying Case, Magnetic Hanging Strap, Mini-USB Cable, Shoulder Strap, TL175 Twistguard Test Leads with Adapter, Zero Ohm Calibration Resistor
Display
LCD
Works With
Batteries Up to 600V
Accuracy
0.09% + 5 (6 VDC); 0.09% + 5 (60 VDC); 0.09% + 5 (600 VDC); 0.5% + 8 (Frequency); 0.8% + 6 (30 milliohm); 0.8% + 6 (300 milliohm); 0.8% + 6 (3000 milliohm); 1% + 8 (3 milliohm); 2% + 10 (600 VAC); 3% + 10 (AC Voltage Ripple); 3% + 20 (AC Voltage Ripple)
Powered By
7.2V Lithium-Ion Battery
Max. Input Volts
1,000V DC
Measures
AC and DC Voltage, Resistance, Ripple Voltage
Input Voltage - Minimum
6 V DC
Batteries Tested
Lithium-Ion
Calibration Certificate Type
Not Certified
Tester Battery Chemistry
Lithium Ion
Tester Number of Batteries Required
1
Digital Display Screen Type
LCD
Testing Functions
Battery Discharge, Ripple Voltage
Input Voltage - Maximum
600 V
Includes Tester Batteries
Batteries Included
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance
Description
Battery Capacity Analyzer, Works With Batteries Up to 600V, Measures Resistance, DC and AC Voltage, Ripple Voltage, Max. Input Volts 1000 DC, Powered By 7.2V Lithium-Ion Battery, LCD Display, Includes Basic Test Lead, Twist Guard Test Lead, Probe Adapter, Battery, Charger, Power Cord, Mini USB, Belt Strap, Shoulder Strap, Magnetic Hanger, Software CD with Operator Manual, Warranty Card, Quick Reference Guide, Spare Fuse, Zero Calibration Board, Soft Case, Manufacturers Warranty Length 3 yr.
Restrictions
Hazardous material
