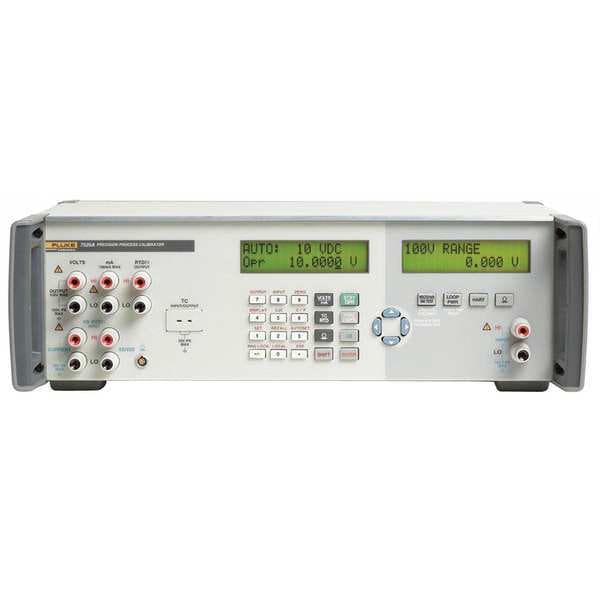

Bench Process Calibrator, 0 to 100VDC
Mfr # 7526A-156
Zoro # G7993115
product price:Â $12,688.99
/ea
Free Shipping & Returns
Key Features
Includes
Getting Started Guide, NIST Traceable Calibration Report, Power Cord, Thermocouple Shorting Jumper, USB to Serial Adapter Cable, Users Manual CD-ROM
Display
LCD
Standards
EN/IEC 61010-1:2010 3rd Edition, UL 61010-1:2012,CAN/CSA 22.2 No. 61010-1-12
Interface
IEEE-488 (GPIB), RS-232
Loop Supply Voltage
24V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 7526A-156
- Zoro #
- G7993115
- UPC #
- 095969643573
- Country of Origin
- United States
Details
- Item
- Bench Process Calibrator
- Includes
- Getting Started Guide, NIST Traceable Calibration Report, Power Cord, Thermocouple Shorting Jumper, USB to Serial Adapter Cable, Users Manual CD-ROM
- Display
- LCD
- Standards
- EN/IEC 61010-1:2010 3rd Edition, UL 61010-1:2012,CAN/CSA 22.2 No. 61010-1-12
- Interface
- IEEE-488 (GPIB), RS-232
- Loop Supply Voltage
- 24V DC
- Accuracy
- 0.003 %
- RTD Type
- Pt 385 100¿, 200¿, 500¿, 1000¿; Pt 3926 100¿; Pt 3916 100¿; Ni 120 120¿; Cu 427 10¿; SPRT
- Powered By
- 120/240V AC
- Current Measurement Range
- 0 to 50 mA DC
- Displayed Pressure Units
- bar, cm wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, psi
- RTD Temperature Range
- -200 Degrees C to 800 Degrees C
- Resistance Measurements
- 0 to 4000¿
- Max. Loop Current
- 20 mA DC
- Internal Pressure Range Accuracy
- 0.05% of Scale
- Thermocouple Type
- B, C, E, J, K, L, N, R, S, T, U, XK, BP
- Thermocouple Temperature Range
- -100 Degrees C to 800 Degrees C
- Voltage Measurement Range
- 0 to 100 V DC
- Internal Pressure Range
- -15 to 10,000 psi
- Resistance Source
- 5 to 4000¿
- Calibration Certificate
- NIST
- Source Current
- 0 to 100 mA DC
- Source Voltage
- 0 to 100 V DC
Description
Bench Process Calibrator, Source Voltage 0 to 100 V DC, Voltage Measurement Range 0 to 100 V DC, Source Current 0 to 100 mA DC, Current Measurement Range 0 to 50 mA DC, Accuracy 0.003 Percent, Thermocouple Temperature Range -100 Degrees C to 800 Degrees C, RTD Temperature Range -200 Degrees C to 800 Degrees C, Resistance Source 5 to 4000 Ohms, Internal Pressure Range -15 to 10,000 psi, Displayed Pressure Units bar, cm wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, psi, Loop Supply Voltage 24V DC
