  9. Digital Multimeter, 600 V Max DC, 0 V Max AC, TRMS, 6,000 Instrument Counts, Backlit LCD

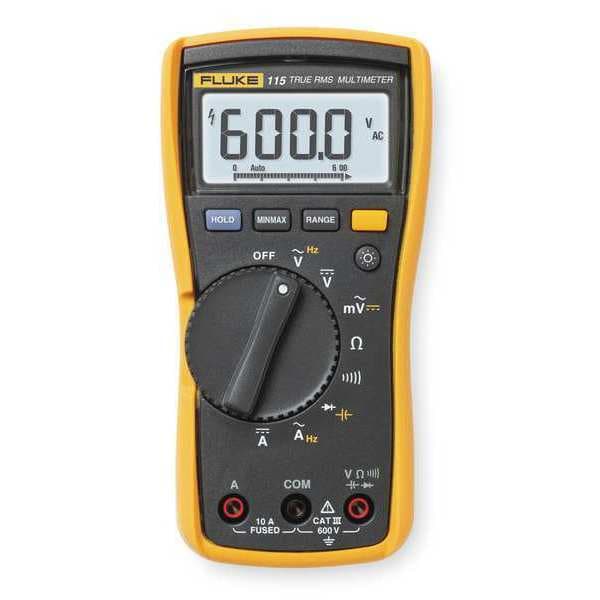

Fluke Digital Multimeter, 600 V Max DC, 0 V Max AC, TRMS, 6,000 Instrument Counts, Backlit LCD FLUKE-115/CZWG - main

Digital Multimeter, 600 V Max DC, 0 V Max AC, TRMS, 6,000 Instrument Counts, Backlit LCD

  • Mfr # FLUKE-115/CZWG

  • Zoro # G8406456

product price: $410.99
/ea
Free Shipping & Returns

Key Features

Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
4 mm PVC Insulated Test Lead, 9V Battery (Installed), Holster, Quick Reference Guide
Standards
cCSAus, CE
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-115/CZWG
Zoro #
G8406456
UPC #
095969476478
Country of Origin
Malaysia

Dimensions

Manufacturers Warranty Length
3 yr
Overall Width
3.4 in
Pulse Width
No
Overall Height
6.6 in
Battery Size
9V
Depth
1.8 in

Details

Item
Digital Multimeter
Display Type
Backlit LCD
Data Hold
Yes
Instrument Counts
6,000
Includes
4 mm PVC Insulated Test Lead, 9V Battery (Installed), Holster, Quick Reference Guide
Standards
cCSAus, CE
Auto Power Off
Yes
Data Logging
Yes
Audible Continuity
Yes
Diode Test
Yes
Series
FLUKE (R) Fluke-115/CZWG
Max. DC Amps
10
Capacitance Range
1 nF to 9999 uF
Basic DC Accuracy
+/-0.50% of Reading +2 Digits
Instrument Safety Rating
CAT III 600V
AC Response
TRMS
NIST Certification By
Fluke
Display
Backlit LCD
Max. Ohms
40 megohm
Auto Ranging
Yes
Max. AC Amps
10
Instrument Frequency Counter Range
0.01 Hz to 50 kHz
Calibration Certificate Included
Yes
Temp. Range
14 Degrees to 122 Degrees F
Multimeter Style
Compact - Basic Features
Duty Cycle
No
Peak Hold
No
Intrinsically Safe
No
Basic AC Current Accuracy
1.5% + 3
Capacitance Measurement Accuracy
1.9% + 2
Current Leakage Testing
No
Dustproof
No
Min-Max-Avg Button Included
Yes
Maximum DC Current Measurement
10 A
Minimum/Maximum Memory
Yes
Battery Voltage
9V
Resistance Measurement Accuracy
+/-5%
Maximum Storage Temperature
140 Degrees F
Weight
550 g
Minimum AC Voltage Measurement
0 V
AC Response Calculation
TRMS
Frequency Measurement Accuracy
0.1% + 2
NIST Certification By Manufacturer
Fluke
Frequency Measurement Resolution
0.01 Hz
Maximum AC Current Measurement
10 A
Capacitance Measurement Resolution
1 nF
Maximum AC Voltage Measurement
600 V
Maximum Capacitance Measurement
9,999 uF
IP Rating
IP42
Minimum Operating Temperature
14 Degrees F
Bluetooth Compatible
No
Minimum Capacitance Measurement
1 nF
Minimum Resistance Measurement
0.1 ohm
Maximum Resistance Measurement
40 megaohm
Maximum DC Voltage Measurement
600 V
Minimum AC Current Measurement
0 A
Removable Screen
No
Software Included
No
Minimum Temperature Measurement
14 Degrees F
Basic AC Voltage Accuracy
1.0% + 3 (DC, 45 Hz to 500 Hz)2.0% + 3 (500 Hz to 1 kHz)
Basic DC Current Accuracy
1.0% + 3
Minimum DC Current Measurement
0 A
Basic DC Voltage Accuracy
+/-0.50% + 2 Digits
Minimum DC Voltage Measurement
0 V
Battery Chemistry
Alkaline
Bar Graph Included
Yes
Maximum Temperature Measurement
122 Degrees F
Elapse Time Clock
Yes
Minimum Frequency Measurement
0.01 Hz
Maximum Frequency Measurement
50 kHz
Maximum Operating Temperature
122 Degrees F
Thermal Imaging
No
Minimum Storage Temperature
-40 Degrees F
Batteries Included
Yes
Parameters Measured
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K)
Fuse Access
Yes
Battery Access
Yes
Waterproof
No

Description

Digital Multimeter, Audible Continuity Yes, Basic AC Voltage Accuracy 1.0 Percent + 3 (DC, 45 Hz to 500 Hz)2.0 Percent + 3 (500 Hz to 1 kHz), Basic DC Voltage Accuracy +/-0.50 Percent + 2 Digits, Data Hold Yes, Basic DC Current Accuracy 1.0 Percent + 3, Instrument Safety Rating CAT III 600V, Maximum AC Voltage Measurement 600 V, Maximum DC Voltage Measurement 600 V, Instrument Counts 6,000, Special Features Easy One-Handed Operation of the Meter, Maximum AC Current Measurement 10 A
