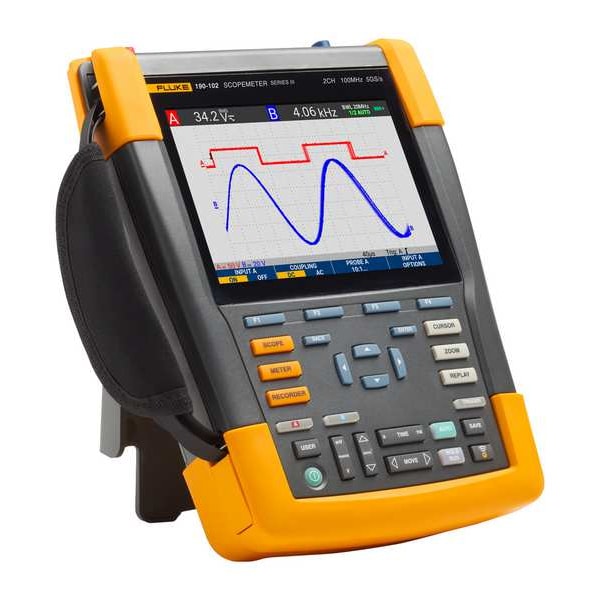

Fluke Digital Oscilloscope FLUKE-190-102-III-S - main

Digital Oscilloscope

  • Mfr # FLUKE-190-102-III-S

  • Zoro # G302016140

product price: $5,933.99
/ea
Free Shipping & Returns

Key Features

Includes
(4) TRM50 Cable Terminators, (4) VPS410-II Probes, AC Power Adapter, Carrying Case, DWA-131 Wi-Fi Dongle, Hand Strap, Hanging Strap, Power Cord, USB Cable
Features
10,000 Points per Trace Waveform Capture (Scope Mode), 4 Independently Floating Isolated Inputs Up to 1000V, 999 Count DMM (2-ch Models: Insulated 5,000 Counts DMM Built-In), Automatic Capture and Replay of 100 Screens, Connect-and-View(TM) Triggering, Frequency Spectrum Analysis Using FFT-Analysis, ScopeRecord(TM) Roll Mode, TrendPlot(TM) Paperless Recorder Mode with Deep Memory, Up to 5 GS/s High-Speed Sampling
Display
Full Color LCD
Channels
2
Triggering Mode
Auto
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FLUKE-190-102-III-S
Zoro #
G302016140
UPC #
195112021804
Country of Origin
Romania

Dimensions

Bandwidth (MHz)
100 MHz
Manufacturers Warranty Length
1 yr (Battery and Accessories), 3 yr (Main Instrument)
Max. Record Length
10k/ Channel
Display Screen Length
5.2 in
Memory Depth
30,000 Data Points Per Channel
Bandwidth
100 MHz
Display Screen Width
3.5 in

Details

Item
Digital Oscilloscope
Includes
(4) TRM50 Cable Terminators, (4) VPS410-II Probes, AC Power Adapter, Carrying Case, DWA-131 Wi-Fi Dongle, Hand Strap, Hanging Strap, Power Cord, USB Cable
Features
10,000 Points per Trace Waveform Capture (Scope Mode), 4 Independently Floating Isolated Inputs Up to 1000V, 999 Count DMM (2-ch Models: Insulated 5,000 Counts DMM Built-In), Automatic Capture and Replay of 100 Screens, Connect-and-View(TM) Triggering, Frequency Spectrum Analysis Using FFT-Analysis, ScopeRecord(TM) Roll Mode, TrendPlot(TM) Paperless Recorder Mode with Deep Memory, Up to 5 GS/s High-Speed Sampling
Display
Full Color LCD
Channels
2
Triggering Mode
Auto
Input Sensitivity
With 10:1 Probe, 20 mV to 1000 V/div_x000B; With 100:1 Probe, 200 mV to 10 kV/div _x000B; Direct (1:1), 2 mV to 100 V/div
Max./Min. Sweep Speed
5 nsec/div to 4 sec/div
True RMS
Yes
FFT Analysis
Yes
Safety Rating
CAT III 1000V/CAT IV 600V
Calibration Certificate
Yes
Glitch Capture
Yes
Sampling Rate
125 MS/s
Battery Type
Rechargeable Li-Ion
Battery Life
Up to 3 hr
Persistence
Off, Short, Medium, Long, Infinite and Envelope Mode
Real Time Clock
Yes, Provides Date and Time Stamp Information for ScopeRecord, for 100 Screen Replay Sequences and for TrendPlot Recordings
Waveform / Measurement Stored
Two Multiple Input ScopeRecord Waveforms Can Be Saved Internally for Later Recall And Analysis
Power Source
Battery
Interface
USB
DC Voltage Measurement - Maximum
1,100 V DC
Body Style
Handheld
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Input Sensitivity - Maximum
100 V/div
AC Voltage Measurement Resolution
100 mV
AC Voltage Measurement - Maximum
1,100 V AC
Calibration Certificate Type
Not Certified
Battery Chemistry
Lithium Ion
DC Voltage Measurement - Minimum
500 mV DC
Number of Channels
2
Includes Batteries
Batteries Included
Input Sensitivity - Minimum
100 V/div
Standards
EN 61010-1, IEC 61010-2-030: CAT IV 600V/CAT III 1000V
Basic DC Voltage Accuracy
+/-(0.50% +6 Counts)
AC Voltage Measurement - Minimum
500 mV AC
IP Rating
IP51
Battery Run Time
3.5 hr
Time Base - Minimum
5 nsec/div
Channel Source Isolation
Fully Isolated
Basic AC Voltage Accuracy
+/-(1% +10 Counts)
AC Magnitude Calculation
True RMS
Digital Display Screen Type
LCD
Time Base - Maximum
4 sec/div

Description

Digital Oscilloscope, Bandwidth (MHz) 100 MHz, 2 Channels, Full Color LCD Display, True RMS Yes, Sampling Rate 125 MS/s, 5 nsec/div to 4 sec/div Max./Min. Sweep Speed, Two Multiple Input ScopeRecord Waveforms Can Be Saved Internally for Later Recall And Analysis Waveform / Measurement Stored, Max. Record Length 10k/ Channel, FFT Analysis Yes, Real Time Clock Yes, Provides Date and Time Stamp Information for ScopeRecord, for 100 Screen Replay Sequences and for TrendPlot Recordings

Restrictions

Hazardous material
