Fluke Power Quality Analyzer, 3 Phase NORMA 6003 - main

Power Quality Analyzer, 3 Phase

  • Mfr # NORMA 6003

  • Zoro # G8041416

product price:  $17,549.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
200 kHz
Phase
3
Includes

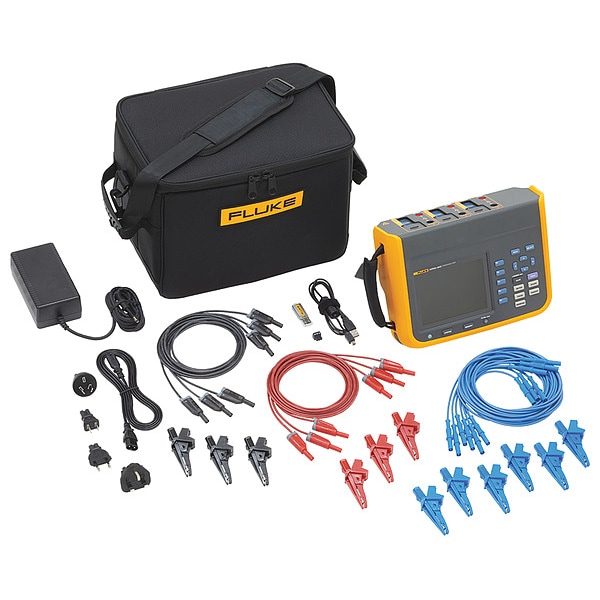

(3) Pin 3.81 mm Black, (6) Pin 3.81 mm Black, (8) Blue Alligator Clips (4) Red (4) Black, Power Cord, Power Supply Adapter, RS-485/Synchrony Adapter, Soft Case, Speed / Torque Adapter, Test Leads 1.5 m, USB (Mini B) Cable, USB Flash Drive for PC SW
Max. Watts
600 kW
Kit Current Capability
1 to 10 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NORMA 6003
Zoro #
G8041416
UPC #
095969918701
Country of Origin
China

Details

Item
Power Quality Analyzer
Sampling Rate
200 kHz
Phase
3
Includes
(3) Pin 3.81 mm Black, (6) Pin 3.81 mm Black, (8) Blue Alligator Clips (4) Red (4) Black, Power Cord, Power Supply Adapter, RS-485/Synchrony Adapter, Soft Case, Speed / Torque Adapter, Test Leads 1.5 m, USB (Mini B) Cable, USB Flash Drive for PC SW
Max. Watts
600 kW
Kit Current Capability
1 to 10 A
Crest Factor
Less Than 2
Communication Protocol
RS-485, USB
For Phase
Three
Maximum AC Current Measured
10 A
IP Rating
IP50
Minimum Operating Temperature
14 Degrees F
Maximum Operating Temperature
14 Degrees F
AC Magnitude Calculation
True RMS
Voltage Channels
3
Minimum AC Voltage Measured
10 V
Alert Type
Light
Maximum DC Voltage Measured
1,500 V
Maximum AC Voltage Measured
1,000 V
Testing Functions
AC Component, Active Power, Apparent Power, Charge/Discharge Capacity (Ah), Crest Factor, DC Component, Efficiency, Electric Energy, Form Factor, Frequency, Fundamental Component, Fundamental Content, Harmonic Content, Harmonic Distortion, Harmonic Factor for Voltages and Currents, Impedance, Mechanical Energy, Mechanical Power, Motor Speed, Peak Value, Peak-Peak, Phase Shift, Power Factor, Reactive Power, Rectified Mean, RMS, Summation Function, Torque
Current Channels
3
Data Output Type
RS-485, USB
Calibration Certificate Included
NIST Traceable
Maximum Wattage
600 kW
Display Type
Digital
Input Impedance
2 megaohm
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Power Source
Battery
Maximum DC Current Measured
2,000 A

Description

Power Quality Analyzer, For Phase Three, Includes (3) Pin 3.81 mm Black, (6) Pin 3.81 mm Black, (8) Blue Alligator Clips (4) Red (4) Black, Power Cord, Power Supply Adapter, RS-485/Synchrony Adapter, Soft Case, Speed / Torque Adapter, Test Leads 1.5 m, USB (Mini B) Cable, USB Flash Drive for PC SW, Maximum AC Current Measured 10 A, Communication Protocol RS-485, USB, Crest Factor Less Than 2
