Shop FOOT MASTER

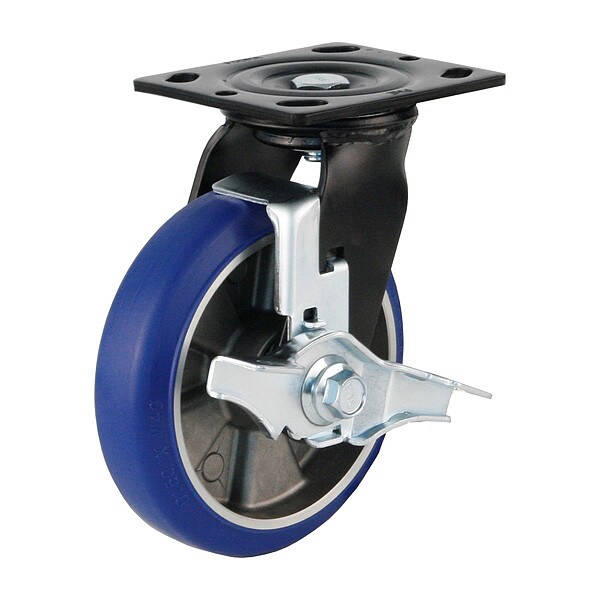

Plate Caster, Swivel, Polyurethane, 190mm H

  • Mfr # PME-150-BSF-MUD

  • Zoro # G511745282

product price:
$
45.19
/ea

Key Features

Number of Mounting Holes
4
Inside Bolt Hole Spacing
3.62 in x 2.59 in or 2.99 in x 2.99 in
Wheel/Tread Hardness Rating
Firm
Includes
Brake
Standards
RoHS Compliant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PME-150-BSF-MUD
Zoro #
G511745282
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Wheel Width
40 mm
Mounting Height
190 mm
Mounting Bolt Dia.
11 mm
Wheel Dia.
150 mm
Mounting Plate Size
4.52 in x 4.01 in

Details

Item
Plate Caster
Number of Mounting Holes
4
Inside Bolt Hole Spacing
3.62 in x 2.59 in or 2.99 in x 2.99 in
Wheel/Tread Hardness Rating
Firm
Includes
Brake
Standards
RoHS Compliant
System of Measurement
Metric
Load Rating
772 lb
Caster Frame Material
Steel
Features
Bolted Wheel Axle Structure
Caster Mounting Type
Plate
Caster Sub-Type
Swivel
Number of Wheels
1
Caster Brake Type
Swivel With Brake
Wheel Core Material
Aluminum
Brake Location
Face
Wheel/Tread Material
Polyurethane
Operating Temperature Range
14 Degrees to 194 Degrees F
Wheel Bearing Type
Ball
Swivel Raceway Type
Double Ball
Frame Construction
Welded
Load Capacity - Maximum
772 lb
Wheel Hardness Rating
95 Shore A

Description

Swivel, Plate Caster, Load Rating 772 lb, Wheel Dia. 150 mm, Wheel Width 40 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Number of Wheels 1, Caster Brake Type Swivel With Brake
