  9. CC LED PD, 60W, Univ, 250-1050mA, 0-10V

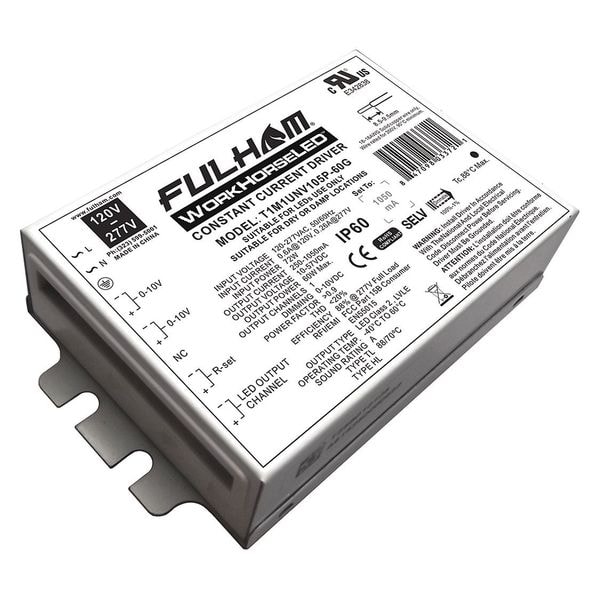

Fulham CC LED PD, 60W, Univ, 250-1050mA, 0-10V T1M1UNV210P60L - main

CC LED PD, 60W, Univ, 250-1050mA, 0-10V

  • Mfr # T1M1UNV210P60L

  • Zoro # G1236501

product price: $64.95
/ea

Key Features

Power Output
60W
Environmental Rating
Damp Location
Length
9.49 in
Width
1.69 in
Height
1.23 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T1M1UNV210P60L
Zoro #
G1236501
UPC #
847098040538
Country of Origin
India

Dimensions

Length
9.49 in
Width
1.69 in
Height
1.23 in

Details

Item
LED Driver
Power Output
60W
Environmental Rating
Damp Location
For Use With
LED Lighting
Input Voltage
120 to 277V AC
Ballast Dimming
Yes
Output Current
500 to 2100 mA
Input Current
0.60AAC
Ballast Dimming Type
0-10V
Output Voltage
10 to 57V DC
Ambient Temp. Range
-40 Degrees to 140 Degrees F
Input Power
72 W
Power Factor
Greater Than 0.95
Brand and Series
WorkHorse
Driver Mounting Location
Universal
Driver Class
Class 2
Ouput Constant
Constant Current
Intended LED Usage
Fixture Array
Output Technology
Programmable
Standards
UL Listed
Total Harmonic Distortion
20 %
Dimming Range
100% to 0%
Dimming Type
Step Dimming
Case Form Factor
Long
Dimming Method
0-10V
Max. Case Temp.
194 Degrees F
Profile
Standard Profile
Dimming
Yes
Number of Bulbs Supported
6
Power Output - Minimum
5 W
Max. Ambient Temp.
140 Degrees F
Input Current - Maximum
0.6 A
Min. Ambient Temp.
-40 Degrees F
Power Factor - Minimum
0.95
Power Output - Maximum
60 W

Description

WorkHorse, LED Driver, Intended LED Usage Fixture Array, Number of Bulbs Supported 6, 120 to 277V AC Input Voltage, 10 to 57V DC Output Voltage, 0.60AAC Input Current, 500 to 2100 mA Output Current, 72 W Input Power, 60W Power Output, 9 1/2 in Length, 1 11/16 in Width, 1 1/8 in Height, Case Form Factor Long, Standard Profile, Class 2
