Functional Devices-Rib

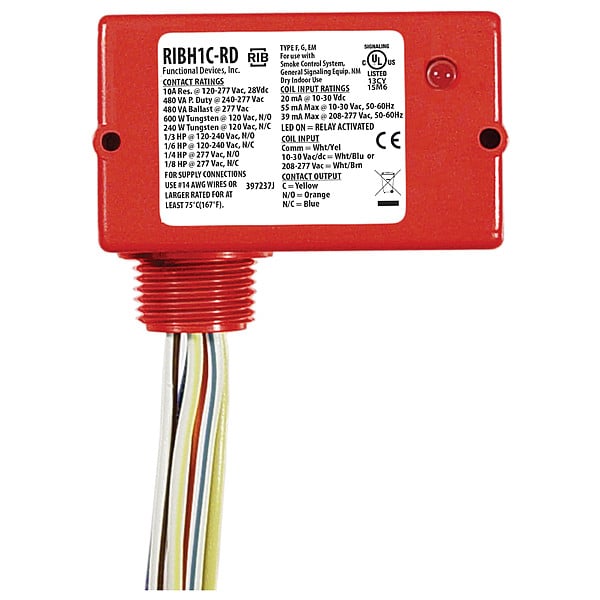

Enclosed Relay, 10A, SPDT

product price: $23.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Coil Volts 12VAC/DC
  • Height 1.5
  • Dimensions 1.70"H x 2.80"W x 1.50"D with 0.50" NPT nipple
  • Width 2.8
  • Housing Color Red
See all product information

Product Information

Dimensions

Height 1.5
Dimensions 1.70"H x 2.80"W x 1.50"D with 0.50" NPT nipple
Width 2.8

Details

Coil Volts 12VAC/DC
Item Enclosed Relay,10A,SPDT,12VAC/DC,Polarzd
Housing Color Red
Humidity Range 5 to 95% (noncondensing)
Wires 16", 600V Rated
Approvals UL Listed, C-UL, CE (All models), UL864
Expected Relay Life 10 million cycles minimum mechanical
Coil Current 33 mA @ 10 Vac 35 mA @ 12 Vac 46 mA @ 24 Vac 55 mA @ 30 Vac 39 mA @ 208-277 Vac (RIBH1C) 13 mA @ 10 Vdc 15 mA @ 12 Vdc 18 mA @ 24 Vdc 20 mA @ 30 Vdc
Override Switch No
Housing Rating UL Accepted for Use in Plenum, NEMA 1
Operating Temperature -30 to 140° F
Coil Voltage Input 10-30 Vac/dc ; 208-277 Vac ; 50-60 Hz (RIBH1C) Drop Out - 2.1 Vac / 2.8 Vdc Pull In - 9 Vac / 10 Vdc
Gold Flash Yes
Contact Ratings 10 Amp Resistive @ 277 Vac 10 Amp Resistive @ 28 Vdc 480 VA Pilot Duty @ 240-277 Vac 480 VA Ballast @ 277 Vac Not rated for Electronic Ballast 600 Watt Tungsten @ 120 Vac (N/O) 240 Watt Tungsten @ 120 Vac (N/C) 1/3 HP @ 120-240 Vac (N/O) 1/6 HP @ 120-240 Vac (N/C) 1/4 HP @ 277 Vac (N/O) 1/8 HP @ 277 Vac (N/C)
No. of Relays & Contact Type One (1) SPDT Continuous Duty Coil
Relay Status LED On - Activated
Operate Time 20ms

Description

Enclosed Relay,10A,SPDT,12VAC/DC,Polarzd
