  13. Prewired Rocker Switch, SPDT, 20A at 277VAC

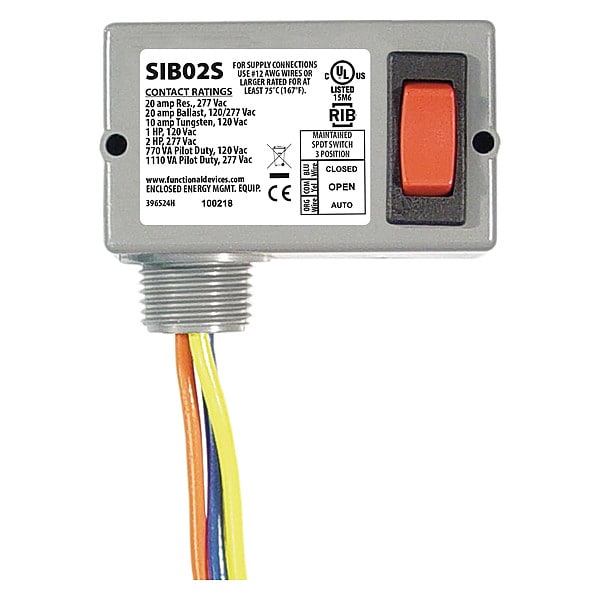

Functional Devices-Rib Prewired Rocker Switch, SPDT, 20A at 277VAC SIB02S - main

Prewired Rocker Switch, SPDT, 20A at 277VAC

  • Mfr # SIB02S

  • Zoro # G5174863

product price: $25.79
/ea

Key Features

Contact Form
SPST
Number of Connections
3
Switch Function
On Maintained/OffMaintained/On Maintained
AC Contact Rating
10 A @ 120 V, 20 A @ 277 V
HP
1 @ 120V AC, 2 @ 277V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SIB02S
Zoro #
G5174863
UPC #
-
Country of Origin
United States

Dimensions

Depth
1.7 in
Height
1.5 in
Width
2.8 in
Dimensions
1.70"H x 2.80"W x 1.50"D with 0.50" NPT nipple
Overall Depth
1.5 in
Overall Width
2.8 in
Overall Height
1.7 in

Details

Item
Prewired Rocker Switch
Contact Form
SPST
Number of Connections
3
Switch Function
On Maintained/OffMaintained/On Maintained
AC Contact Rating
10 A @ 120 V, 20 A @ 277 V
HP
1 @ 120V AC, 2 @ 277V AC
Connection
16 in Wire Leads
Body Color
Gray
Switch Color
Red
Operating Temp. Range
-30 Degrees to 140 Degrees F
Legend
Hand/Off/Auto
Special Features
1/2 in NPT Nipple
NEMA Rating
1
Standards
CE, cUL, RoHS, US Listed
Product Type
Prewired Rocker Switch
Operating Temperature
-30 to 140° F
Housing Rating
UL Accepted for Use in Plenum, NEMA 1
Wires
16", 600V Rated
Humidity Range
5 to 95% (noncondensing)
Switch Position
2 Position Maintained, On/On
Switch Ratings
20 Amp Resistive @ 277 Vac 1110 VA Pilot Duty @ 277 Vac 770 VA Pilot Duty @ 120 Vac 20 Amp Ballast @ 277 Vac 10 Amp Tungsten @ 120 Vac 2 HP @ 277 Vac 1 HP @ 120 Vac
Approvals
UL Listed, UL916, C-UL, CE
Lamp Type
No Lamp Module Included
Operating Temperature - Minimum
-30 Degrees F
Features
Override Switch on Load Side of Relay
Includes Lamp Module
No Lamp Module Included
Number of Positions
3
Operator Illumination
Non-Illuminated
Operating Temperature - Maximum
140 Degrees F
Terminal Connection Type
16 in Wire Leads
Switch Function Configuration
Off
Lamp Module Type
No Lamp Module Included
Horsepower
1 hp @ 120V AC, 2 hp @ 277V AC
Includes Lens
No Lens Included
NEMA Enclosure Rating
1

Description

Prewired Rocker Switch, Contact Form SPST, Number of Connections 3, Switch Function On Maintained/OffMaintained/On Maintained, AC Contact Rating 10 A @ 120 V, 20 A @ 277 V, DC Contact Rating Not Applicable, HP 1 @ 120V AC, 2 @ 277V AC, Legend Hand/Off/Auto, Body Color Gray, Switch Color Red, Operating Temp. Range -30 Degrees to 140 Degrees F, Standards CE, cUL, RoHS, US Listed, IP Rating Not Applicable, Special Features 1/2 in NPT Nipple
