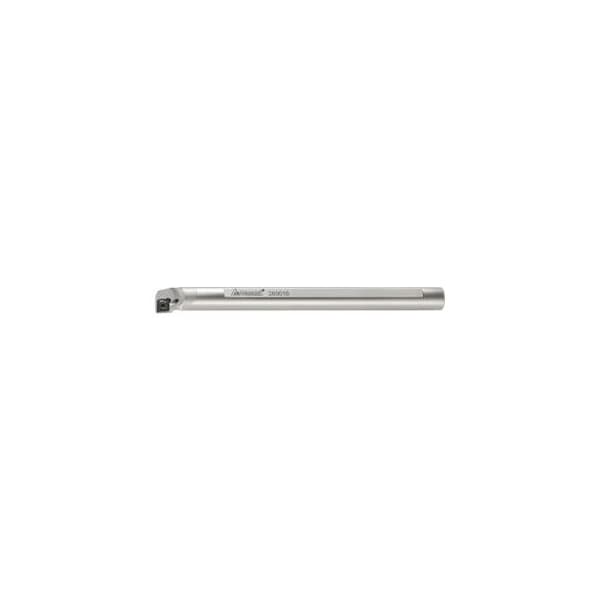

Carbide Boring Bar, E20S SCLCR09, for CC 3 Inserts, Right-Hand
- Mfr # 260016 20/09
- Zoro # G414821410
product price:Â
$
1,880.99
/ea
Free Shipping & Returns
Key Features
Overall Length
250 mm
Insert Shape
80 Degrees Diamond
Free Length
120 mm
Shank Dia.
20 mm
Center Offset
12 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 260016 20/09
- Zoro #
- G414821410
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 250 mm
- Free Length
- 120 mm
- Shank Dia.
- 20 mm
- Min. Pre-Drill Diameter Dmin
- 23 mm
- Head Length
- 16 mm
- Max. Bore Dia.
- 8 x D
- Insert Size
- 9 mm
- Clamping Height
- 19 mm
- Size
- 20/09
Details
- Item
- Boring bar
- Insert Shape
- 80 Degrees Diamond
- Center Offset
- 12 mm
- Material
- Carbide
- ISO Number
- E20S SCLCR/L09
- Application
- Internal longitudinal turning
- Setting Angle
- 95 Angle
- Cutting Direction
- Right-Hand
- Standards
- DIN 8024
- Insert Assignment
- left-hand and neutral
- Coolant Through
- Yes
- Shank Type
- Boring bar
Description
Boring bar carbide 20/09 mmStandard: DIN 8024 Shank Diameters: 20 mm ISO code toolholder: E20S SCLCR/L09 Setting angle k: 95 degrees suitable indexable insert: CC 09T3 Minimum pre-drill Diametermin: 23 mm Center offset L3: 12 mm
