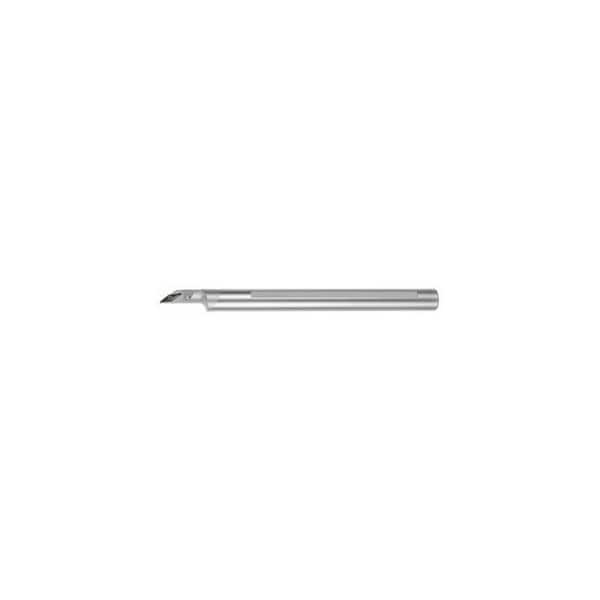

Carbide Boring Bar, E20S SVJBR 11, for VB 2 Inserts, Right-Hand
Mfr # 261112 20/11
Zoro # G114821321
product price:Â
$
1,702.99
/ea
Free Shipping & Returns
Key Features
Overall Length
250 mm
Insert Shape
35 Degrees Diamond
Size
20/11
Shank Dia.
20 mm
Max. Bore Dia.
8 x D
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 261112 20/11
- Zoro #
- G114821321
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 250 mm
- Size
- 20/11
- Shank Dia.
- 20 mm
- Max. Bore Dia.
- 8 x D
- Free Length
- 38 mm
- Cutting Width
- 11 mm
- Neck Width
- 11 mm
- Clamping Height
- 19 mm
- Min. Pre-Drill Diameter Dmin
- 24 mm
- Insert Size
- 11 mm
- Head Length
- 38 mm
Details
- Item
- Boring bar
- Insert Shape
- 35 Degrees Diamond
- Setting Angle
- 142 Angle
- Application
- Internal longitudinal turning
- Material
- Carbide
- ISO Number
- E20S SVJBR/L 11
- Shank Type
- Boring bar
- Center Offset
- 2 mm
- Cutting Direction
- Right-Hand
- Coolant Through
- Yes
Description
Boring bar carbide 20/11 mmStandard: Works standard Shank Diameters: 20 mm ISO code toolholder: E20S SVJBR/L 11 Setting angle k: 142 degrees suitable indexable insert: VB 1103 Minimum pre-drill Diametermin: 24 mm Center offset L3: 2 mm
