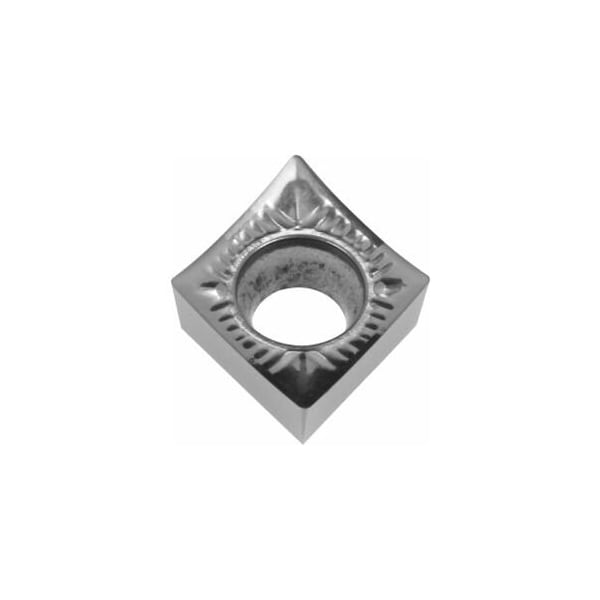

Carbide Turning Insert, Diamond, CCMT32.52 / CCMT09T308, for Aluminum
Mfr # 260152 HB7310
Zoro # G514822836
product price: $16.19
/eaSold in multiples of 10 for $161.90
Key Features
Workpiece Material
Aluminum
Max. Cutting Depth (ap max)
3.25 mm
Tolerance
G
Corner Radius
0.8 mm
Insert Shape
80 Degrees Diamond
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260152 HB7310
Zoro #
G514822836
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Max. Cutting Depth (ap max)
3.25 mm
Corner Radius
0.8 mm
Insert Thickness
2.5 mm
Cutting Depth
0.1 mm
Min. Cutting Depth (ap min)
0.55 mm
Details
Workpiece Material
Aluminum
Tolerance
G
Insert Shape
80 Degrees Diamond
ISO Number
CCMT 09T308
Insert Application
Finishing
Cutting Conditions
Continuous
Chip-Breaker
AM
Insert Material
Carbide
Inscribed Circle
3
Insert Style
CCMT
No. of Edges
2
Grade
HB7310
Item
Indexable Insert for Turning
Description
CC.T 09T308 HB7310 Grade: HB7310 Chip breaker: AM Tolerance: G Cutting depth ap: 0.1 4 mm Feed f: 0.05 0.5 mm/rev. Cutting speed vc main application: 350 600 m/min
