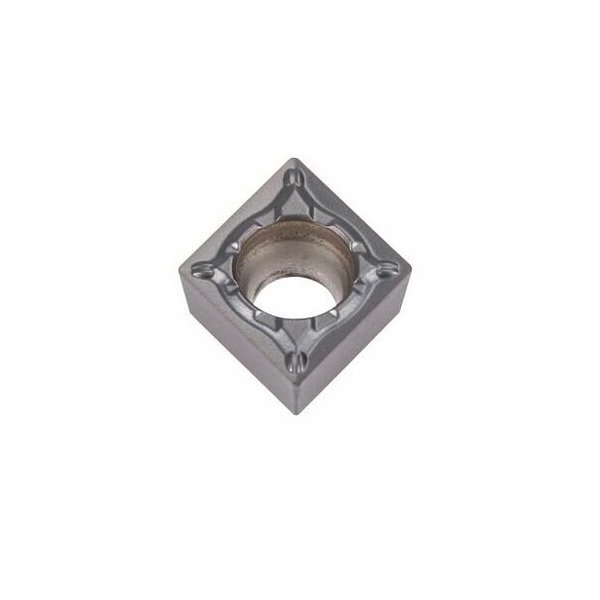

Carbide Turning Insert, Diamond, CCMT431 / CCMT120404, for Stainless Steel
Mfr # 260064 HB7140-2
Zoro # G514822706
product price: $12.25
/ea
Sold in multiples of 10 for $122.50
Key Features
Inscribed Circle
4
Chip-Breaker
VS
No. of Edges
2
Tolerance
Stainless Steel
Insert Material
Carbide
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260064 HB7140-2
Zoro #
G514822706
UPC #
-
Country of Origin
Japan
Dimensions
Cutting Depth
0.2 mm
Min. Cutting Depth (ap min)
0.25 mm
Corner Radius
0.4 mm
Insert Size
431
Max. Cutting Depth (ap max)
4.25 mm
Insert Thickness
3 mm
Details
Inscribed Circle
4
Chip-Breaker
VS
No. of Edges
2
Tolerance
Stainless Steel
Insert Material
Carbide
Item
Indexable Insert for Turning
ISO Number
CCMT 120404
Insert Application
Finishing
Cutting Conditions
Heavily Interrupted
Workpiece Material
Stainless Steel
Insert Style
CCMT
Grade
HB7140-2
Coating
coated
Insert Shape
80 Degrees Diamond
Description
CC.T 120404 HB7140-2 Grade: HB7140-2 Chip breaker: VS Tolerance: M Cutting depth ap: 0.2 2.5 mm Feed f: 0.1 0.3 mm/rev. Cutting speed vc main application: 70 230 m/min
