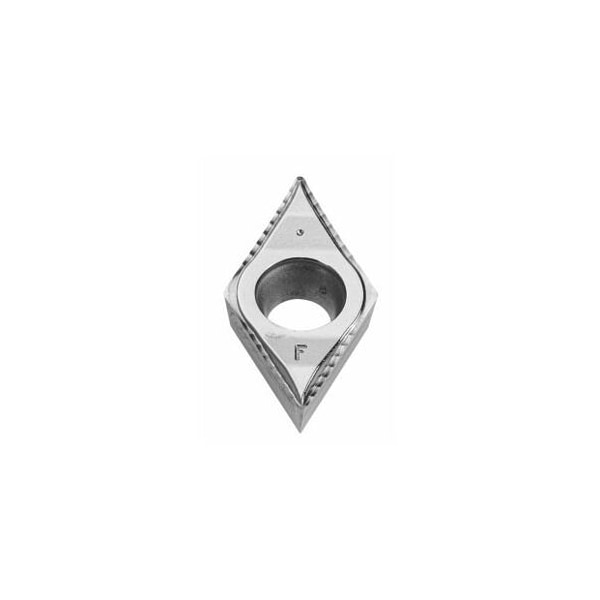

Carbide Turning Insert, Diamond, DCGT070202, for Aluminum
Mfr # 260351 HU7315-1
Zoro # G914822573
product price: $13.65
/eaSold in multiples of 10 for $136.50
Key Features
Tolerance
G
Inscribed Circle
2
Grade
HU7315-1
Cutting Conditions
Continuous
Max. Cutting Depth (ap max)
1.75 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260351 HU7315-1
Zoro #
G914822573
UPC #
-
Country of Origin
Austria
Dimensions
Max. Cutting Depth (ap max)
1.75 mm
Insert Size
70202
Corner Radius
0.2 mm
Cutting Depth
0.05 mm
Insert Thickness
1.5 mm
Min. Cutting Depth (ap min)
0.15 mm
Details
Tolerance
G
Inscribed Circle
2
Grade
HU7315-1
Cutting Conditions
Continuous
Chip-Breaker
AF
ISO Number
DCGT 070202
Insert Shape
55 Degrees Diamond
No. of Edges
2
Workpiece Material
Aluminum
Item
Indexable Insert for Turning
Insert Application
Finishing
Insert Style
DCGT
Coating
Uncoated
Insert Material
Carbide
Description
DC.T 070202 HU7315-1 Grade: HU7315-1 Chip breaker: AF Tolerance: G Cutting depth ap: 0.05 0.6 mm Feed f: 0.03 0.1 mm/rev. Cutting speed vc main application: 120 600 m/min
