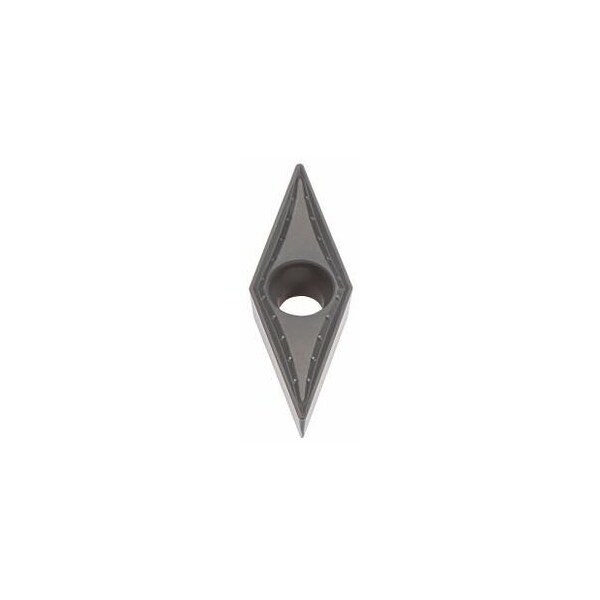

Carbide Turning Insert, Diamond, VBMT332 / VBMT160408, for Stainless Steel
Mfr # 261234 HB7130-2
Zoro # G514821563
product price: $15.15
/ea
Sold in multiples of 10 for $151.50
Key Features
Insert Material
Carbide
Chip-Breaker
VM
Insert Size
332
Min. Cutting Depth (ap min)
0.55 mm
Corner Radius
0.8 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
261234 HB7130-2
Zoro #
G514821563
UPC #
-
Country of Origin
Japan
Dimensions
Insert Size
332
Min. Cutting Depth (ap min)
0.55 mm
Corner Radius
0.8 mm
Max. Cutting Depth (ap max)
2.5 mm
Cutting Depth
0.5 mm
Insert Thickness
3 mm
Details
Insert Material
Carbide
Chip-Breaker
VM
Insert Application
Finishing
Workpiece Material
Stainless Steel
Grade
HB7130-2
ISO Number
VBMT 160408
Insert Style
VBMT
Cutting Conditions
Slightly Interrupted
No. of Edges
2
Insert Shape
35 Degrees Diamond
Inscribed Circle
3
Tolerance
Stainless Steel
Item
Indexable Insert for Turning
Description
VB.T 160408 HB7130-2 Grade: HB7130-2 Chip breaker: VM Tolerance: M Cutting depth ap: 0.5 2.5 mm Feed f: 0.1 0.4 mm/rev. Cutting speed vc main application: 70 240 m/min
