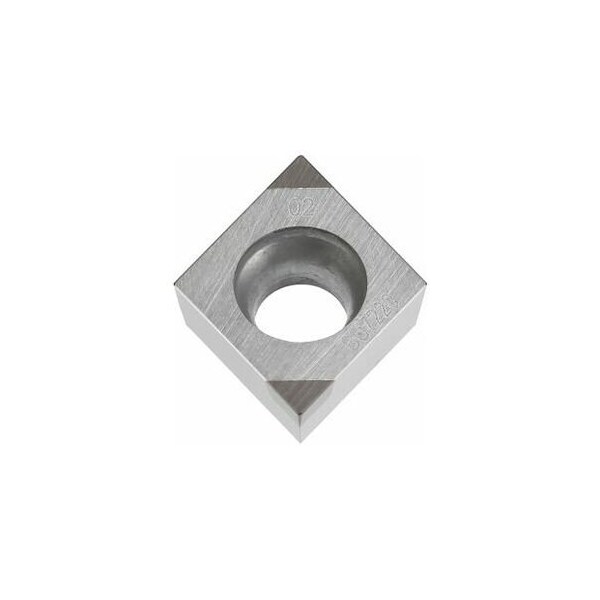

CBN Turning Insert, Diamond, CCGW09T302, for Cast Iron
Mfr # 265412 G
Zoro # G014821841
product price: $80.59
/ea
Free Shipping & Returns
Key Features
Cutting Conditions
Heavily Interrupted, Continuous, Slightly Interrupted
Insert Material
CBN
Insert Application
Finishing
Insert Thickness
2.5 mm
Min. Cutting Depth (ap min)
0.03 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
265412 G
Zoro #
G014821841
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Insert Thickness
2.5 mm
Min. Cutting Depth (ap min)
0.03 mm
Cutting Depth
0.03 mm
Corner Radius
0.2 mm
Max. Cutting Depth (ap max)
0.12 mm
Insert Size
09T302
Details
Cutting Conditions
Heavily Interrupted, Continuous, Slightly Interrupted
Insert Material
CBN
Insert Application
Finishing
Cutting Edge Version
G
ISO Number
CCGW 09T302
Item
Indexable Insert for Turning
Inscribed Circle
3
Insert Style
CCGW
No. of Edges
2
Grade
BU7220
Insert Shape
80 Degrees Diamond
Description
Fitted with 2 cutters. Corner radius: 0.2 mm Grade: BU7220 Cutting depth ap: 0.03 0.12 mm Feed f: 0.04 0.12 mm/rev. Cutting speed vc main application: 120 160 m/min Cutting edge G
