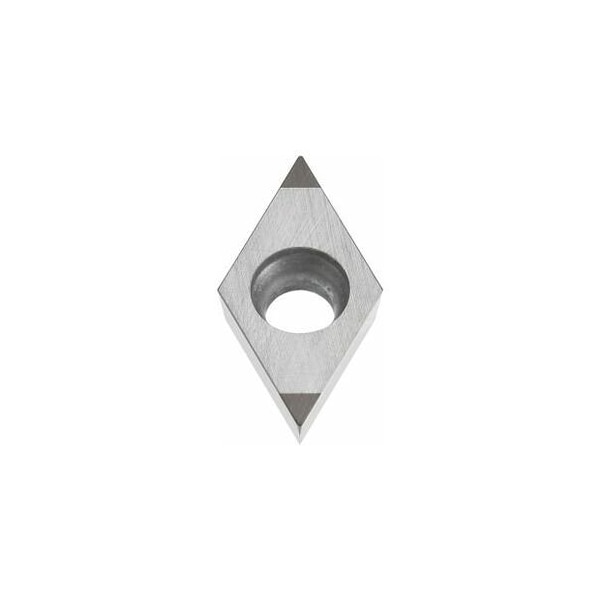

CBN Turning Insert, Diamond, DCGW11T302, for Cast Iron
Mfr # 265436 G
Zoro # G814821652
product price:Â $80.59
/eaKey Features
Insert Shape
55 Degrees Diamond
Insert Style
DCGW
Inscribed Circle
3
Insert Size
11T302
Grade
BU7220
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 265436 G
- Zoro #
- G814821652
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Insert Size
- 11T302
- Corner Radius
- 0.2 mm
- Insert Thickness
- 2.5 mm
- Cutting Depth
- 0.03 mm
- Min. Cutting Depth (ap min)
- 0.03 mm
- Max. Cutting Depth (ap max)
- 0.12 mm
Details
- Item
- Indexable Insert for Turning
- Insert Shape
- 55 Degrees Diamond
- Insert Style
- DCGW
- Inscribed Circle
- 3
- Grade
- BU7220
- Insert Material
- CBN
- Insert Application
- Finishing
- ISO Number
- DCGW 11T302
- Cutting Edge Version
- G
- Cutting Conditions
- Continuous
- No. of Edges
- 2
Description
Fitted with 2 cutters. Grade: BU7220 Cutting edge G Cutting depth ap: 0.03 0.12 mm Feed f: 0.04 0.12 mm/rev. Cutting speed vc main application: 120 160 m/min
