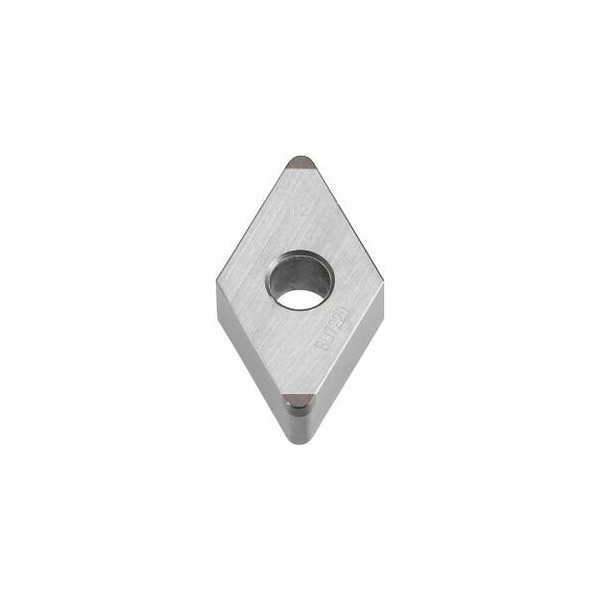

CBN Turning Insert, Diamond, DNGA443 / DNGA150612, for Cast Iron
Mfr # 255451 G
Zoro # G014824170
product price:Â $79.99
/ea
Free Shipping & Returns
Key Features
Insert Shape
Diamond
Insert Style
DNGA
Inscribed Circle
4
Insert Size
443
Grade
BU7220
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
255451 G
Zoro #
G014824170
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Insert Size
443
Corner Radius
1.2 mm
Depth of Cut
0.05 mm
Depth of Cut max
0.2 mm
Insert Thickness
4
Details
Insert Shape
Diamond
Insert Style
DNGA
Inscribed Circle
4
Grade
BU7220
Insert Material
CBN
Insert Application
Finishing
ISO Number
DNGA 150612
Number of Inserts
2
Type
Indexable insert for turning
Feed
0.05 mm/rev.
Cutting speed
90 m/min
Description
Fitted with 2 cutters. Description: New type of CBN with a balanced combination wear-resistance and tensile strength for general-purpose use in hardened steel up to 67 HRC in combination with a special constitution. For use both in continuous cutting and also in slightly interrupted and heavily interrupted cutting. Grade: BU7220 Cutting edge G Cutting depth ap: 0.05 0.2 mm Feed f: 0.05 0.15 mm/rev. Cutting speed vc main application: 90 140 m/min
