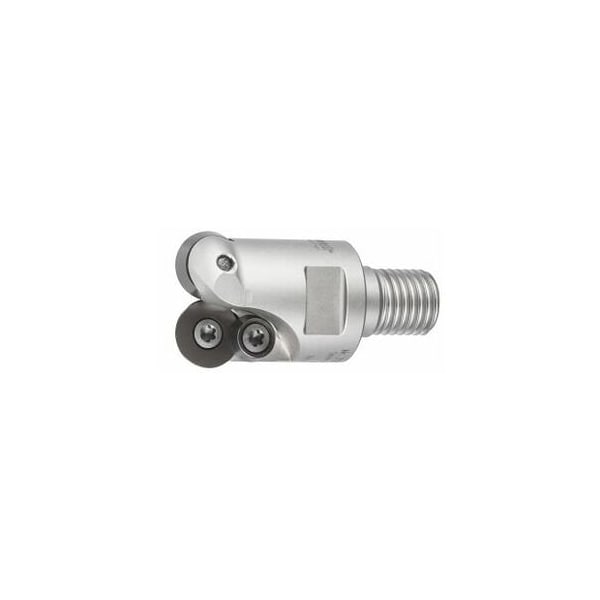

Copy Mill, with Threaded Shank, for RD. Inserts, 32mm Diameter, 2 Inserts
- Mfr # 212170 32/2
- Zoro # G316120154
product price:Â
$
210.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 30°
Insert Screw
219800 (20IP; 5.7 Nm)
Number of Teeth
2
Cutting Dia.
32 mm
Overall Length
42 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212170 32/2
- Zoro #
- G316120154
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 32 mm
- Overall Length
- 42 mm
- Diameter 2
- 28.7 mm
- Ramping Length for αmax
- 11.92 mm
- Diameter 1
- 17 mm
- Free length
- 42 mm
- Diameter 3
- 16 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 30°
- Insert Screw
- 219800 (20IP; 5.7 Nm)
- Number of Teeth
- 2
- Axial Rake Angle
- 0°
- Circular Interpolation Milling - Dmax
- 62 mm
- Approach Angle
- 15 – 30°
- Fz Helix
- 0.7
- Circular Interpolation Milling - Dmin
- 48 mm
- Shank Type
- with threaded shank
- Milling head suitable for insert shape
- Round
- Circular interpolation milling ap
- 3.5 mm
- Mounting Thread
- M16
- Tool Exchange
- PowerCard
- Coolant Through
- Yes
- Ramping Angle
- 5.37°
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning as the cutting edge wears. Application: With pack of insert screws No. 219800 - for securing indexable inserts and retaining washers. Attention: Retaining screws and retaining washers should not be used for inserts with positive geometry. Note: Use GARANT torque screwdriver TQ No. 211750 size 5.7 with bit No. 674252 size 20IP. ap max = 3.5 mm. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 2D1 h6: 17 mmD2: 28.7 mmD3: 16 mm Overall length Ltot: 42 mm Mounting thread M: M16
