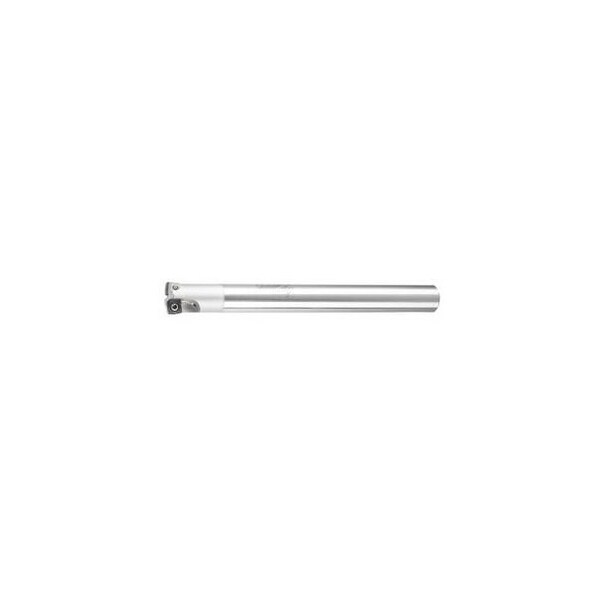

FeedKing High Feed Rate Milling Cutter, with Plain Shank, 18mm Diameter, 2L Inserts
Mfr # 212902 18/2L
Zoro # G416120269
product price: $320.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
10°
Cutting Dia.
18 mm
Number of Teeth
2
Overall Length
160 mm
Series
FeedKing
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
212902 18/2L
Zoro #
G416120269
UPC #
-
Country of Origin
Italy
Dimensions
Cutting Dia.
18 mm
Overall Length
160 mm
Shank Dia.
16 mm
Max. Cutting Depth
0.85 mm
Diameter 3
5 mm
Ramping Length for αmax
4 mm
Details
Cutting Angle
10°
Number of Teeth
2
Item
Copy mill
Series
FeedKing
Insert Screw
219810 (9IP; 2.2 Nm)
Circular Interpolation Milling - Dmin
23 mm
Dia/No. of Cutting Edges
18 mm/2L
Tool Exchange
PowerCard
Overhang
30 mm
Ramping Angle
4.29°
Shank Type
Plain shank
Machining Strategy
HPC
Fz Helix
0.7
Circular Interpolation Milling - Dmax
34 mm
Circular interpolation milling ap
0.85 mm
Coolant Through
Yes
Axial Rake Angle
5°
Description
Version: Dynamic cutter geometry for highest feed rates. Extremely smooth cutting action due to self-stabilising insert bedding. Optimised geometry for reduced cutting forces- thereby reducing the stress on the main spindle. Advantage: Particularly cost-effective due to exceptionally sturdy 4-edge inserts. Note: Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size 9IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 2D3: 5 mm maximum cutting depth ap max: 0.85 mm Overhang L1: 30 mm Overall length Ltot: 160 mm ShankDs h6: 16 mm
