Shop CHICAGO-LATROBE

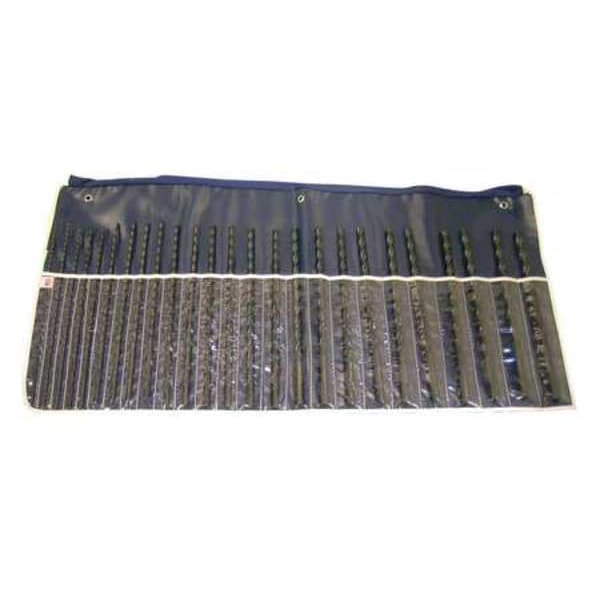

25PC Heavy-Duty Extra Long Drill Set Chicago-Latrobe 120X Steam Oxide HSS 1/8-1/2x1/64

  • Mfr # 69869

  • Zoro # G3627197

product price:
$
869.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
25
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Drill Bit Dimension Type
Fractional Inch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
69869
Zoro #
G3627197
UPC #
662355698693
Country of Origin
United States
Item
Extra Long Drill Bit Set
Number of Pieces
25
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
List Number
120X
Coolant Through
No
Material
High Speed Steel
Decimal Equivalent
0.1250
Point Type
K-Notch Point
Standards
Not Rated
Shank Type - Machining
Straight
Flute Type
Spiral
Number of Flutes
2
Shank Type
Straight
Coolant Fed
Non-Coolant Through
Material - Machining
High Speed Steel
Primary Material Application
Cast Iron, Steel
Primary Material Application ISO Code
K, P
Measurement System
Fractional Inch
Spiral Direction
Right Hand
Finish - Machining
Black Oxide
Helix Angle
28 Degrees
Material Grade - Machining
High Performance
Series
120X
Drill Bit Point Type
Notched Point
Thread Direction
Right Hand
Helix Angle - Maximum
34 Degrees
Drill Bit Case Type
Cloth/Plastic Roll
Number of Drill Bits
25
Helix Angle - Minimum
28 Degrees

Description

The CHICAGO-LATROBE 69869 Extra Long Drill Bit Set includes 25 straight shank drill bits sized from 1/8 inch to 1/2 inch in fractional inch increments. Manufactured from high-speed steel, these bits are specified for machining cast iron and steel. The drill bits feature a K-notch point type with a 118-degree point angle and are finished with a black oxide coating. Feature right-hand spiral flutes and a right-hand cutting direction, with an extended-length drilling depth as specified for the extended-length drill length class.

  • Set includes 25 drill bits sized 1/8" to 1/2" by 64ths
  • Material: High-speed steel
  • Point type: K-Notch point with 118° angle
  • Flutes: 2 spiral flutes with 28° helix angle
  • Shank type: Straight
  • Cutting direction and thread direction: Right hand
  • Drill diameter tolerance: +0.0000 in / -0.0007 to -0.0010 in
  • Finish: Black oxide coating
  • Drill length class: Extended-length
  • Primary material applications: Cast iron, steel
  • Coolant type: Non-coolant through (external coolant only)
  • Measurement system: Fractional inch
