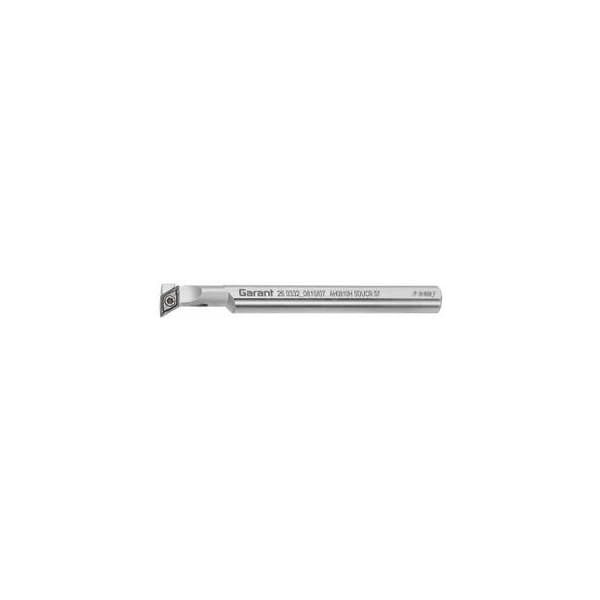

HSS Boring Bar, AH0810H SDUCR07, for DC 2 Inserts, Right-Hand
Mfr # 260332 0810/07
Zoro # G014820622
product price:Â
$
190.99
/ea
Free Shipping & Returns
Key Features
Overall Length
100 mm
Insert Shape
55 Degrees Diamond
Size
0810/07
Material
HSS
Head Length
22 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 260332 0810/07
- Zoro #
- G014820622
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Overall Length
- 100 mm
- Size
- 0810/07
- Head Length
- 22 mm
- Shank Dia.
- 10 mm
- Clamping Height
- 9 mm
- Max. Bore Dia.
- 5 x D
- Insert Size
- 7 mm
- Min. Pre-Drill Diameter Dmin
- 12.5 mm
- Neck Width
- 8 mm
- Usable Depth
- 5 mm
Details
- Item
- Boring Bar
- Insert Shape
- 55 Degrees Diamond
- Material
- HSS
- Shank Type
- Boring bar
- Application
- Internal longitudinal turning
- Center Offset
- 7 mm
- Setting Angle
- 93 Angle
- Cutting Direction
- Right-Hand
- Coolant Through
- Yes
- ISO Number
- AH0810H SDUCR/L07
- Insert Assignment
- right-hand and neutral
Description
Boring bar HSS 0810/07 mmStandard: Works standard Shank Diameters: 10 mm ISO code toolholder: AH0810H SDUCR/L07 Setting angle k: 93 degrees suitable indexable insert: DC 0702 Minimum pre-drill Diametermin: 12.5 mm Center offset L3: 7 mm
