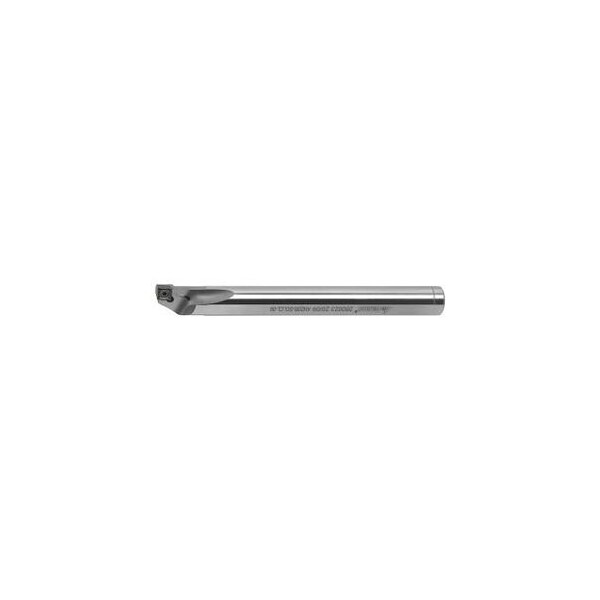

HSS Boring Bar, AH20R SCLCL09, for CC 3 Inserts, Left-Hand
- Mfr # 260023 20/09
- Zoro # G514820511
product price:Â
$
342.99
/ea
Free Shipping & Returns
Key Features
Overall Length
200 mm
Insert Shape
80 Degrees Diamond
Cutting Direction
Left-Hand
Max. Bore Dia.
5 x D
ISO Number
AH20R SCLCR/L09
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 260023 20/09
- Zoro #
- G514820511
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Overall Length
- 200 mm
- Max. Bore Dia.
- 5 x D
- Insert Size
- 9 mm
- Free Length
- 100 mm
- Clamping Height
- 18 mm
- Shank Dia.
- 20 mm
- Min. Pre-Drill Diameter Dmin
- 23 mm
- Size
- 20/09
Details
- Item
- Boring bar
- Insert Shape
- 80 Degrees Diamond
- Cutting Direction
- Left-Hand
- ISO Number
- AH20R SCLCR/L09
- Shank Type
- Boring bar
- Insert Assignment
- right-hand and neutral
- Setting Angle
- 95 Angle
- Center Offset
- 13 mm
- Overhang
- 100 mm
- Coolant Through
- Yes
- Application
- Internal longitudinal turning
- Material
- HSS
Description
Boring bar HSS 20/09 mmStandard: Works standard Shank Diameters: 20 mm ISO code toolholder: AH20R SCLCR/L09 Setting angle k: 95 degrees suitable indexable insert: CC 09T3 Minimum pre-drill Diametermin: 23 mm Center offset L3: 13 mm
