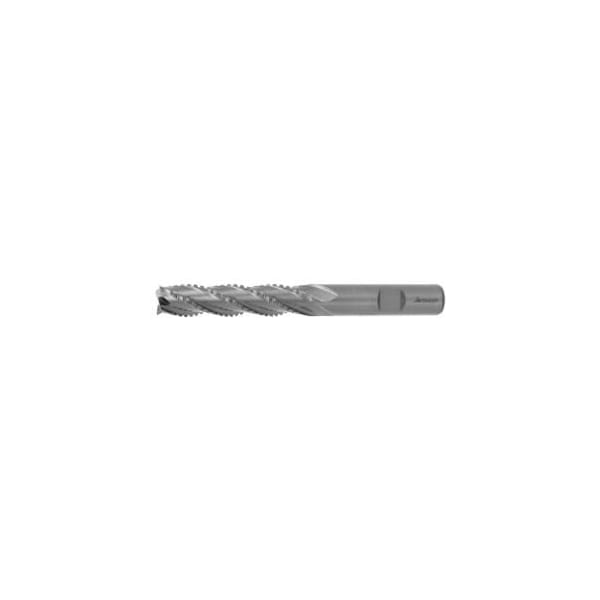

HSS Co8 High Performance End Mill, Uncoated, 6 mm
Mfr # 191870 6
Zoro # G314376164
product price: $43.15
/eaKey Features
Shank Tolerance
h6
Type of Product
End Mill
Coolant Through
no
Color Ring
without
Maximum Cutting Depth Ap Max When Slot Milling From Solid
3 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
191870 6
Zoro #
G314376164
UPC #
-
Country of Origin
South Africa
Dimensions
Maximum Cutting Depth Ap Max When Slot Milling From Solid
3 mm
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Side Milling
25 mm
Tolerance Nominal Diameter
js12
Overall Length
65 mm
Length of Cut
25 mm
Shank Dia.
6 mm
Milling Diameter
6 mm
Details
Shank Tolerance
h6
Type of Product
End Mill
Coolant Through
no
Color Ring
without
Milling profile
NF
Corner Chamfer Angle
90 Degrees
Correction Factor Fz
1.25
Number of Flutes
4
Shank Type
DIN 1835 B to h6
End Mill Style
Square
End Mill Material
Cobalt High Speed Steel
Helix Angle
30 Degrees
Finish
uncoated
Cutting Direction
horizontal, oblique and vertical
Description
Multi-flute mills with ground chip breaker on flutes. End cutting teeth for plunging. Special surface treatment. Advantage: Applicable as finishing cutter with particularly high cutting performance.
