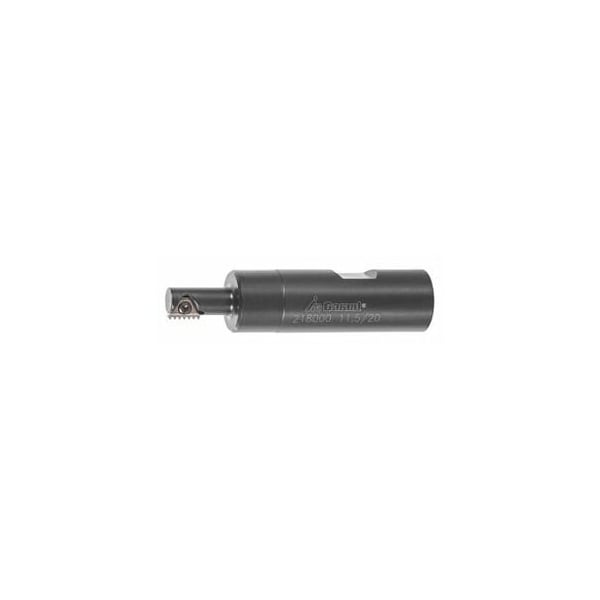

Indexable Thread Mill, with Weldon Flat, 11.5mm Diameter
Mfr # 218000 11,5/20
Zoro # G616120328
product price:Â $279.99
/ea
Free Shipping & Returns
Key Features
Overall Length
85 mm
Shank Dia.
20 mm
Insert Size
11
Coolant Through
Yes
Cutting Direction
left-hand and right-hand
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
218000 11,5/20
Zoro #
G616120328
UPC #
-
Country of Origin
Israel
Dimensions
Overall Length
85 mm
Shank Dia.
20 mm
Insert Size
11
Effective Diameter
11.5 mm
Max. Cutting Depth
35 mm
Details
Item
Thread milling cutter
Coolant Through
Yes
Cutting Direction
left-hand and right-hand
Clamp Screw
219923
Shank Type
Weldon shank
Number of Clamping Slots
1
For Hole Type
Blind hole
Number of Teeth
1
Effective Dia/Overhang
11.5 mm/20 mm
Overhang
20 mm
Description
Application: - For parallel internal and external threads- other inserts and taper thread tools available on request. - For threads in through holes and blind holes. - For universal use cutting left-hand and right-hand threads. - No chip clearance problems- since only short chips are produced. - Low cutting pressure. Through-coolant: yes Insert size: 11 Number of cutting edges Z: 1 Overall length L: 85 mm ShankDs: 20 mm Clamping screw: 219923
