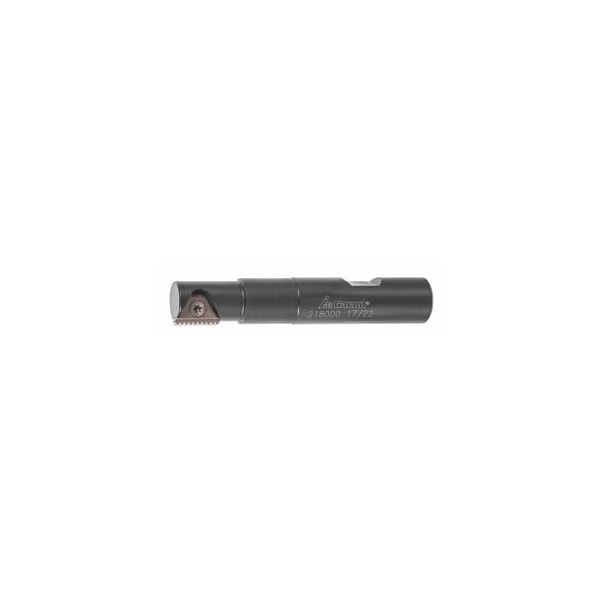

Indexable Thread Mill, with Weldon Flat, 17mm Diameter
- Mfr # 218000 17/22
- Zoro # G216120322
product price:Â
$
338.99
/ea
Free Shipping & Returns
Key Features
Overall Length
90 mm
Shank Dia.
16 mm
Insert Size
16
Coolant Through
Yes
Clamp Screw
279810 5
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 218000 17/22
- Zoro #
- G216120322
- UPC #
- -
- Country of Origin
- Israel
- Item
- Thread milling cutter
- Coolant Through
- Yes
- Clamp Screw
- 279810 5
- Cutting Direction
- left-hand and right-hand
- Number of Clamping Slots
- 1
- Effective Dia/Overhang
- 17 mm/22 mm
- Number of Teeth
- 1
- For Hole Type
- Blind hole
- Overhang
- 22 mm
- Shank Type
- Weldon shank
Dimensions
- Overall Length
- 90 mm
- Shank Dia.
- 16 mm
- Insert Size
- 16
- Max. Cutting Depth
- 35 mm
- Effective Diameter
- 17 mm
Description
Application: - For parallel internal and external threads- other inserts and taper thread tools available on request. - For threads in through holes and blind holes. - For universal use cutting left-hand and right-hand threads. - No chip clearance problems- since only short chips are produced. - Low cutting pressure. Through-coolant: yes Insert size: 16 Number of cutting edges Z: 1 Overall length L: 90 mm ShankDs: 16 mm Clamping screw: 279810 5
