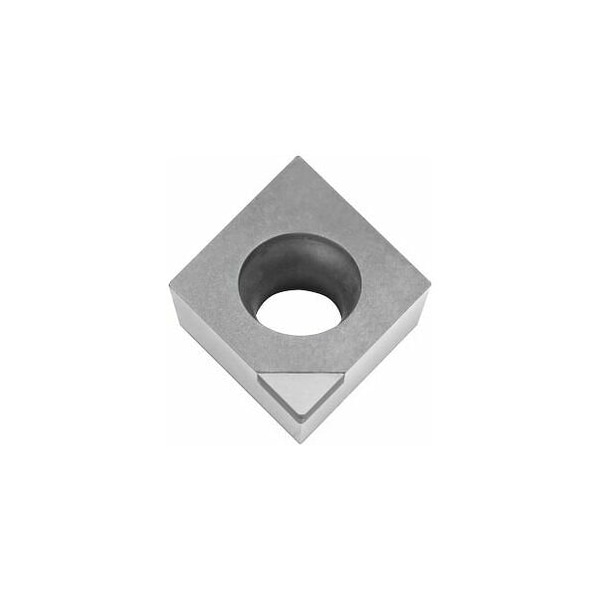

PCD Turning Insert, Diamond, CCGT09T304FN
Mfr # 265817 N
Zoro # G614822606
product price: $74.99
/eaKey Features
Corner Radius
0.4 mm
No. of Edges
1
Insert Style
CCGT
Cutting Edge Version
Aluminum
Cutting Depth
0.1 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
265817 N
Zoro #
G614822606
UPC #
-
Country of Origin
Germany
Dimensions
Corner Radius
0.4 mm
Cutting Depth
0.1 mm
Insert Thickness
2.5 mm
Min. Cutting Depth (ap min)
0.1 mm
Max. Cutting Depth (ap max)
2.5 mm
Details
No. of Edges
1
Insert Style
CCGT
Cutting Edge Version
Aluminum
Item
Indexable Insert for Turning
Insert Material
PCD
Cutting Edge
N
ISO Number
CCGT 09T304 FN
Insert Shape
80 Degrees Diamond
Grade
PCD
Cutting Conditions
Continuous
Insert Application
Roughing-Finishing
Inscribed Circle
3
Rake
6°
Description
PCD Polycrystalline diamond, fine grain. Neutral, without chip breaker. Application: For aluminium, aluminium alloys, non-ferrous metals, plastics, composite materials, titanium alloys, sintered metals. Rake: 6 degrees Grade: PCD Cutting edge N Cutting depth ap: 0.1 2.5 mm Feed f: 0.03 0.4 mm/rev. Cutting speed vc for alu < 10 % Si: 300 2000 m/min Cutting speed vc for non-ferrous metals: 300 1500 m/min
