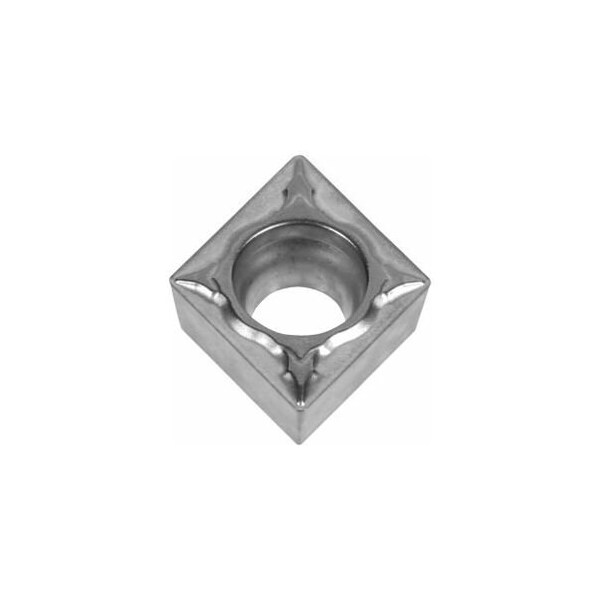

Cermet Turning Insert, Diamond, CCMT060202, for Steel
Mfr # 260050 CU7010
Zoro # G314821862
product price:Â $7.15
/ea
Sold in multiples of 10 for $71.50
Key Features
Insert Shape
80 Degrees Diamond
Insert Style
CCMT
Inscribed Circle
2
Insert Size
60,202
Chip-Breaker
SS
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
260050 CU7010
Zoro #
G314821862
UPC #
-
Country of Origin
Japan
Dimensions
Insert Size
60,202
Corner Radius
0.2 mm
Cutting Depth
0.2 mm
Insert Thickness
1.5 mm
Min. Cutting Depth (ap min)
0.15 mm
Max. Cutting Depth (ap max)
2 mm
Details
Item
Indexable Insert for Turning
Insert Shape
80 Degrees Diamond
Insert Style
CCMT
Inscribed Circle
2
Chip-Breaker
SS
Grade
CU7010
Insert Material
Cermet
Insert Application
Finishing
ISO Number
CCMT 060202
Coating
Uncoated
Cutting Conditions
Continuous
Workpiece Material
Steel
Secondary Application
Stainless Steel
No. of Edges
2
Tolerance
Stainless Steel
Description
CC.T 060202 CU7010 Grade: CU7010 Chip breaker: SS Tolerance: M Cutting depth ap: 0.2 2.5 mm Feed f: 0.05 0.25 mm/rev. Cutting speed vc main application: 90 210 m/min
