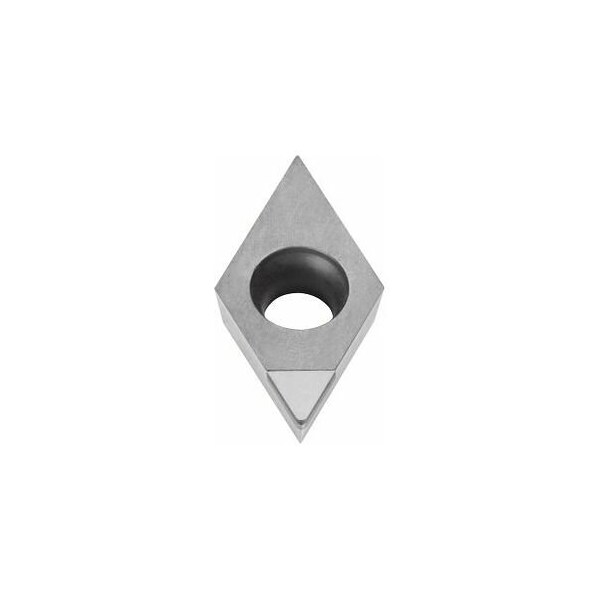

PCD Turning Insert, Diamond, DCGT070204FN
Mfr # 265837 N
Zoro # G214821894
product price: $72.99
/eaKey Features
No. of Edges
1
Insert Shape
55 Degrees Diamond
Insert Style
DCGT
Grade
PCD
ISO Number
DCGT 070204 FN
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
265837 N
Zoro #
G214821894
UPC #
-
Country of Origin
Germany
Dimensions
Cutting Depth
0.1 mm
Min. Cutting Depth (ap min)
0.1 mm
Max. Cutting Depth (ap max)
2.5 mm
Insert Thickness
1.5 mm
Corner Radius
0.4 mm
Details
No. of Edges
1
Insert Shape
55 Degrees Diamond
Item
Indexable Insert for Turning
Insert Style
DCGT
Grade
PCD
ISO Number
DCGT 070204 FN
Rake
6°
Cutting Edge
N
Cutting Conditions
Continuous
Cutting Edge Version
Aluminum
Insert Application
Semi-roughing
Inscribed Circle
2
Insert Material
PCD
Description
PCD Polycrystalline diamond, fine grain. Neutral, without chip breaker. Application: For aluminium, aluminium alloys, non-ferrous metals, plastics, composite materials, titanium alloys, sintered metals. Rake: 6 degrees Grade: PCD Cutting edge N Cutting depth ap: 0.1 2.5 mm Feed f: 0.03 0.4 mm/rev. Cutting speed vc for alu < 10 % Si: 300 2000 m/min Cutting speed vc for non-ferrous metals: 300 1500 m/min
