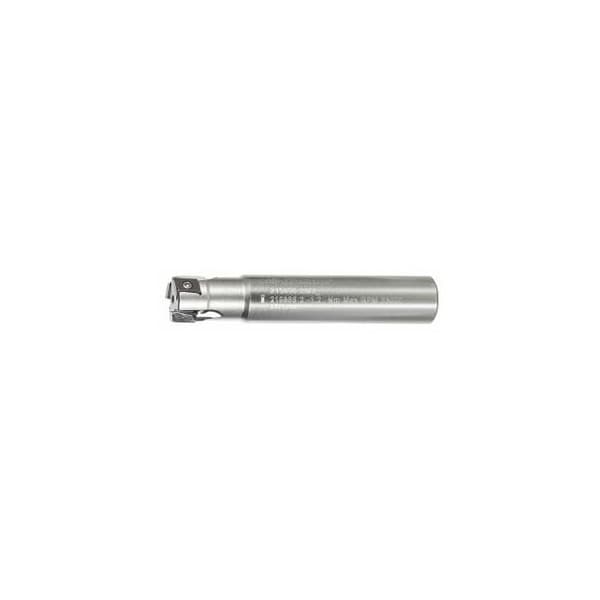

Power Tang Square Tangential Shoulder Mill, Close Pitch, with Plain Shank, 20mm Diameter, 3 Inserts
Mfr # 215956 20/3
Zoro # G616121028
product price:Â $417.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
20 mm
Series
Power Tang
Overall Length
110 mm
Cutting Angle
90°
Insert Screw
219868 2 (8IP; 1.2 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215956 20/3
- Zoro #
- G616121028
- UPC #
- -
- Country of Origin
- Sweden
Dimensions
- Cutting Dia.
- 20 mm
- Overall Length
- 110 mm
- Shank Dia.
- 20 mm
- Max. Cutting Depth
- 8 mm
- Shank Size
- 20
Details
- Item
- End / face mill
- Series
- Power Tang
- Cutting Angle
- 90°
- Insert Screw
- 219868 2 (8IP; 1.2 Nm)
- Coolant Through
- Yes
- Shank Type
- Plain Shank
- Overhang
- 30 mm
- Dia/No. of Cutting Edges
- 20 mm/3
- Milling Application
- Corner milling
- Tool Exchange
- PowerCard
- Number of Teeth
- 3
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Cutting edgeDC: 20 mm Number of cutting edges Z: 3 maximum cutting depth ap max: 8 mm Overhang L1: 30 mm Overall length Ltot: 110 mm ShankDs h6: 20 mm
