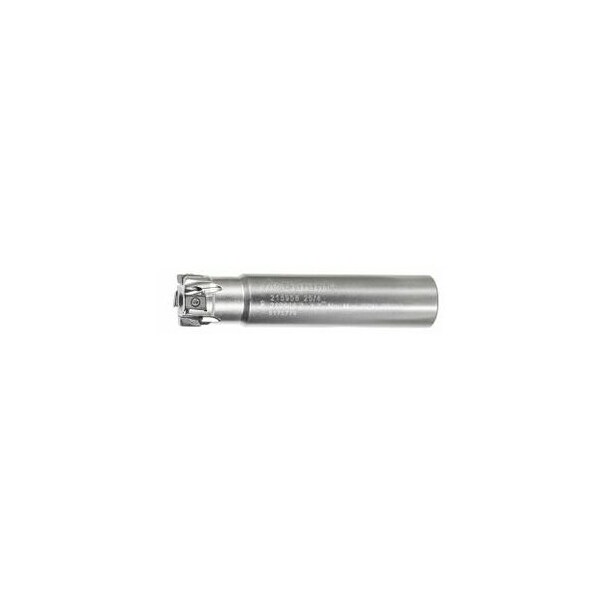

Power Tang Square Tangential Shoulder Mill, Close Pitch, with Plain Shank, 25mm Diameter, 4 Inserts
Mfr # 215956 25/4
Zoro # G116121030
product price: $459.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
25 mm
Series
Power Tang
Overall Length
120 mm
Shank Dia.
25 mm
Insert Screw
219868 2 (8IP; 1.2 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
215956 25/4
Zoro #
G116121030
UPC #
-
Country of Origin
Sweden
Dimensions
Cutting Dia.
25 mm
Overall Length
120 mm
Shank Dia.
25 mm
Max. Cutting Depth
8 mm
Shank Size
25
Details
Item
End / face mill
Series
Power Tang
Insert Screw
219868 2 (8IP; 1.2 Nm)
Cutting Angle
90°
Overhang
30 mm
Number of Teeth
4
Tool Exchange
PowerCard
Shank Type
Plain Shank
Coolant Through
Yes
Dia/No. of Cutting Edges
25 mm/4
Milling Application
Corner milling
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Cutting edgeDC: 25 mm Number of cutting edges Z: 4 maximum cutting depth ap max: 8 mm Overhang L1: 30 mm Overall length Ltot: 120 mm ShankDs h6: 25 mm
