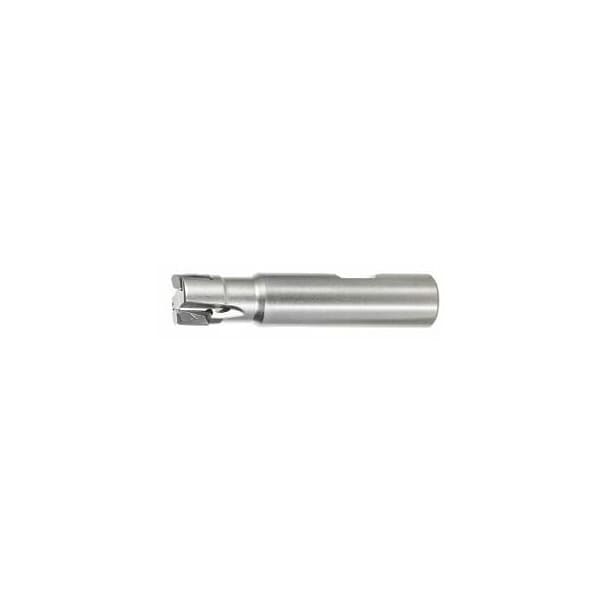

Power Tang Square Tangential Shoulder Mill, Close Pitch, with Weldon Flat, 16mm Diameter, 2 Inserts
Mfr # 215954 16/2
Zoro # G916120998
product price: $366.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
16 mm
Series
Power Tang
Overall Length
78 mm
Shank Dia.
16 mm
Cutting Angle
90°
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
215954 16/2
Zoro #
G916120998
UPC #
-
Country of Origin
Sweden
Dimensions
Cutting Dia.
16 mm
Overall Length
78 mm
Shank Dia.
16 mm
Max. Cutting Depth
8 mm
Shank Size
16
Details
Item
End / face mill
Series
Power Tang
Cutting Angle
90°
Insert Screw
219868 1 (8IP; 1.2 Nm)
Dia/No. of Cutting Edges
16 mm/2
Tool Exchange
PowerCard
Number of Teeth
2
Milling Application
Corner milling
Overhang
25 mm
Shank Type
Weldon Shank
Coolant Through
Yes
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Cutting edgeDC: 16 mm Number of cutting edges Z: 2 maximum cutting depth ap max: 8 mm Overhang L1: 25 mm Overall length Ltot: 78 mm ShankDs h6: 16 mm
