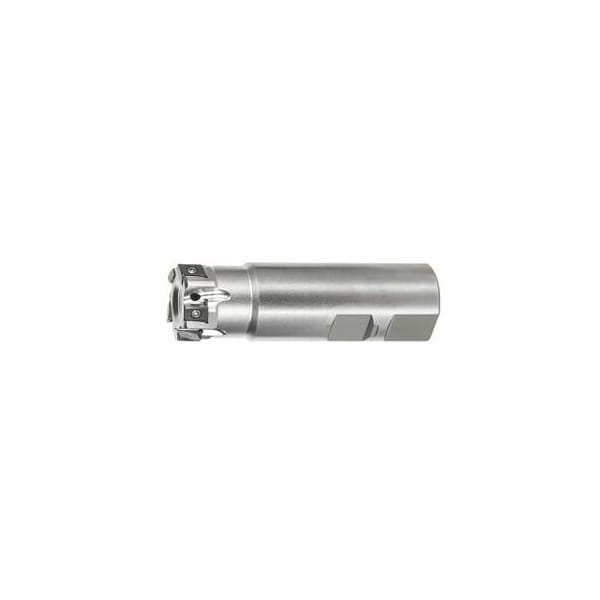

Power Tang Square Tangential Shoulder Mill, Close Pitch, with Weldon Flat, 32mm Diameter, 5 Inserts
Mfr # 215954 32/5
Zoro # G016121017
product price: $493.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
32 mm
Series
Power Tang
Overall Length
105 mm
Insert Screw
219868 2 (8IP; 1.2 Nm)
Shank Dia.
32 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
215954 32/5
Zoro #
G016121017
UPC #
-
Country of Origin
Sweden
Dimensions
Cutting Dia.
32 mm
Overall Length
105 mm
Shank Dia.
32 mm
Shank Size
32
Max. Cutting Depth
8 mm
Details
Item
End / face mill
Series
Power Tang
Insert Screw
219868 2 (8IP; 1.2 Nm)
Cutting Angle
90°
Coolant Through
Yes
Shank Type
Weldon Shank
Dia/No. of Cutting Edges
32 mm/5
Milling Application
Corner milling
Tool Exchange
PowerCard
Number of Teeth
5
Overhang
30 mm
Description
Version: Maximum stability due to tangentially arranged inserts. High feed rate values for maximum metal removal rate due to optimum indexable insert with stability in the direction of the cutting force. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Cutting edgeDC: 32 mm Number of cutting edges Z: 5 maximum cutting depth ap max: 8 mm Overhang L1: 30 mm Overall length Ltot: 105 mm ShankDs h6: 32 mm
