  11. Diamond Turning Insert, Diamond, 3, VCGT, 2, Carbide

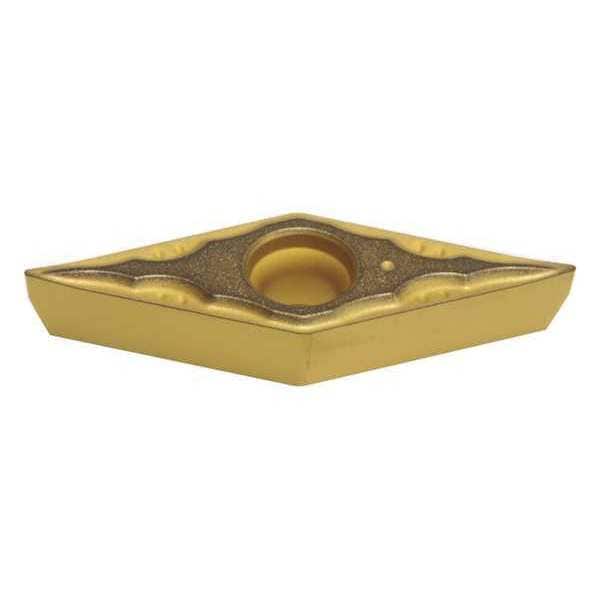

Sumitomo Diamond Turning Insert, Diamond, 3, VCGT, 2, Carbide VCGT332MESI-AC6030M - main

Diamond Turning Insert, Diamond, 3, VCGT, 2, Carbide

  • Mfr # VCGT332MESI-AC6030M

  • Zoro # G6380635

product price: $20.59
/ea
Sold in multiples of 10 for $205.90

Key Features

Insert Shape
Diamond
Insert Style
VCGT
Inscribed Circle
3
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VCGT332MESI-AC6030M
Zoro #
G6380635
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
332
Corner Radius
2
Nose Radius
0.0313"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.173"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VCGT
Inscribed Circle
3
Chip-Breaker
Yes
Grade
AC6030M
Insert Material
Carbide
Insert Application
Roughing
Rake
0 Degrees
ISO Number
VCGT160408MN-SI
Cutting Direction
Neutral
Workpiece Compatibility
Stainless (M)
ANSI Number
VCGT332MESI-AC6030M
No. of Edges
2
Coating
CBN
Steel (P) Compatibility
No
Mounting Style
Screw-On
Hardened (H) Compatibility
No
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
Yes
Cast Iron (K) Compatibility
No
For Use With
Toolholders, Boring Bars
Non Ferrous (N) Compatibility
No
Number of Cutting Edges
2
Clearance Angle
7 Degrees
Measurement System
Fractional Inch
ANSI Code
VCGT332MESI
Shape
Rhombic
Primary Material Application ISO Code
M
Chip-Breaker Code
MESI
Manufacturer Grade
AC6030M
Features
Fracture Resistant
Finish - Machining
Absotech
Material - Machining
Carbide
Chip-Breaker Style
Single
Coating Process
CVD
Cutting Application
Turning
Primary Material Application
Stainless Steel
Insert Holding Type
Countersink Hole
Included Angle
35 Degrees
Material
Carbide
Application
Roughing
Style
VCGT

Description

Diamond Turning Insert, Chip-Breaker Code MESI, Inscribed Circle 3/8 in, Absotech, ANSI Code VCGT332MESI, Chip-Breaker Style Single, Clearance Angle 7 Degrees , Coating Process CVD
