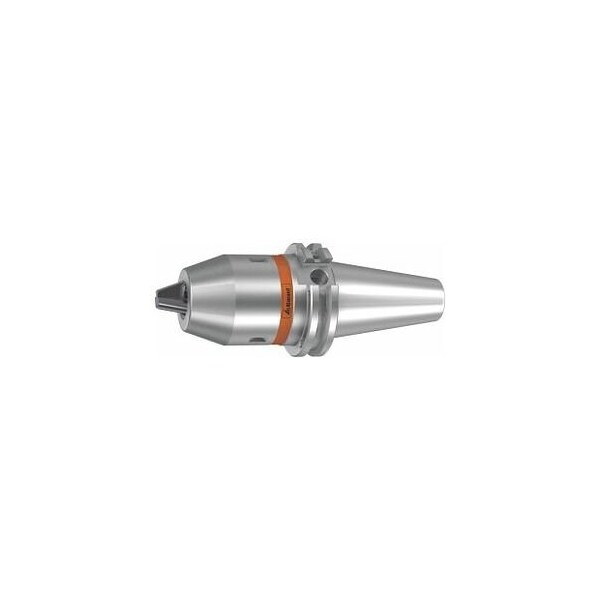

Short drill chuck Form AD, SK 40, Clamping Range: 1-16mm
Mfr # 301425 1-16
Zoro # G314775158
product price:Â
$
525.99
/ea
Free Shipping & Returns
Key Features
Coolant Through
Yes, With Max. 50 Bar
Max. Tightening Torque
≤ 14 N·m
Balance Quality
G 2.5 at 25,000 rpm
Concentricity
≤ 20 µm
Shape
AD
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 301425 1-16
- Zoro #
- G314775158
- UPC #
- -
- Country of Origin
- Spain
Dimensions
- Outside Dia.
- 50 mm
- Taper Size
- SK40
- Clamping Dia.
- 1 mm
Details
- Item
- Short drill chuck
- Coolant Through
- Yes, With Max. 50 Bar
- Max. Tightening Torque
- ≤ 14 N·m
- Balance Quality
- G 2.5 at 25,000 rpm
- Concentricity
- ≤ 20 µm
- Shape
- AD
- Standards
- ISO 7388-1
- Projection
- 80 mm
- Type
- slim
- Spare Torx Chuck Key No. 625220
- TX25
Description
For clockwise and anticlockwise rotation. With Balluff/RFID chip bore. Maximum radial run-out 20 um. Sandblasted and ground. Slim design. Targeted coolant transfer to tools with IC. Optimum holding torques at the tool. Supplied with: Torx chuck key with T-handle for high clamping force. Optional extras: Pull studs PS No. 308600 308806. Pull stud wrenches No. 308820, 308835. maximum tightening torque Md max: 14 Nm Type: slim Overhang dimension A: 80 mm External Dia D: 50 mm Spare Torx chuck key No. 625220: TX25
