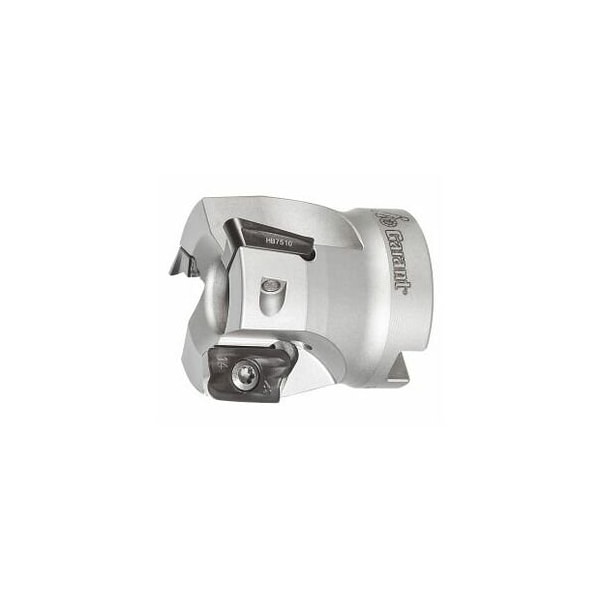

Softcut Shoulder Mill, with Bore, 40mm Diameter, 3 Inserts
Mfr # 215160 40/3
Zoro # G216121213
product price:Â $298.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
40 mm
Series
Softcut®
Overall Length
40 mm
Cutting Angle
90°
Insert Screw
219808 (15IP; 3.8 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215160 40/3
- Zoro #
- G216121213
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 40 mm
- Overall Length
- 40 mm
- Ramping Length for αmax
- 31.95 mm
- Mounting Bore Dia.
- 16 mm
- Free length
- 40 mm
- Diameter 3
- 34 mm
Details
- Item
- End / face mill
- Series
- Softcut®
- Cutting Angle
- 90°
- Insert Screw
- 219808 (15IP; 3.8 Nm)
- Tool Exchange
- PowerCard
- Shank Type
- with bore
- Circular Interpolation Milling - Dmin
- 74 mm
- Circular interpolation milling ap
- 1 mm
- Machining Strategy
- MTC
- Circular Interpolation Milling - Dmax
- 78 mm
- Coolant Through
- Yes
- Fz Helix
- 0.5
- Dia/No. of Cutting Edges
- 40 mm/3
- Number of Teeth
- 3
- Ramping Angle
- 0.9°
- Axial Rake Angle
- 11°
Description
Version: High precision square shoulder milling cutter with irregular pitch for very smooth cutting- very high precision and cutting power. High performance indexable square shoulder milling cutter with special geometry for reduced cutting forces for MTC applications under unstable conditions or for spindles with low drive power. Application: For corner milling to large depths- also slotting. General use in all steels including stainless steels. Especially for MTC Multi Task Cutting use on the new generation of turning / milling centres MTM. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. The insert pocket must be modified when using indexable inserts with a radius greater than 3.1 mm. Overall length Ltot: 40 mm Mounting bore : 16 mm Circular interpolation millingDmin: 74 mm Circular interpolation millingDmax: 78 mm Circular interpolation milling ap: 1 mm Ramping angle max: 0.9 degrees
