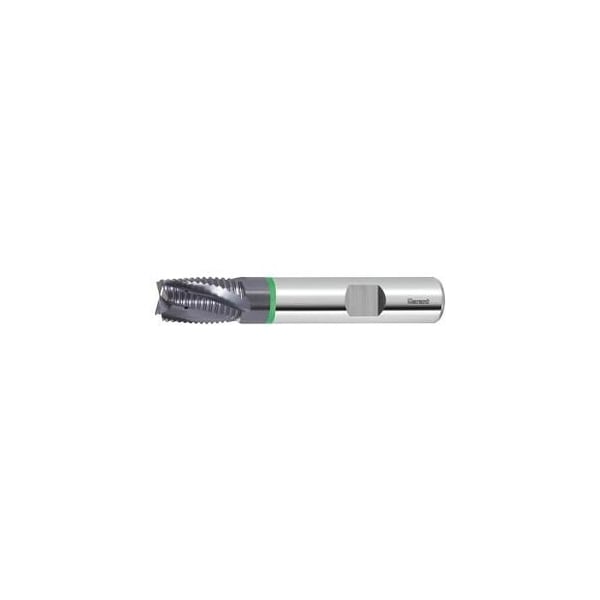

Solid Carbide Roughing End Mill, Coolant Through, TiAlN Coated, 8 mm
Mfr # 205488 8
Zoro # G214385143
product price: $146.99
/ea
Free Shipping & Returns
Key Features
Color Ring
green
Milling profile
HR
Standard
DIN 6527
Type of Product
End Mill
Corner Chamfer Angle
45 Degrees
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
205488 8
Zoro #
G214385143
UPC #
-
Country of Origin
Germany
Dimensions
Maximum Cutting Depth Ap Max When Slot Milling From Solid
8 mm
Maximum Cutting Depth Ap Max When Side Milling
11 mm
Corner Chamfer Width at 45°
0.3 mm
Tolerance Nominal Diameter
d11
Min. Cutting Depth
0.1 mm
Overall Length
58 mm
Shank Dia.
8 mm
Milling Diameter
8 mm
Length of Cut
11 mm
Description
With internal coolant supply. The coolant is fed directly to the cutting edges. This gives longer tool-life and complete swarf evacuation. This is especially important when milling slots or pockets. Tolerance nominal Dia. d11 No. of teeth Z: 3 Helix angle: 20 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 11 mm Overall length L: 58 mm Shank Dia. Ds: 8 mm Corner chamfer width at 45 Deg: 0.3 mm Feed fz for slot milling in steel < 900 N/mm2: 0.04 mm
