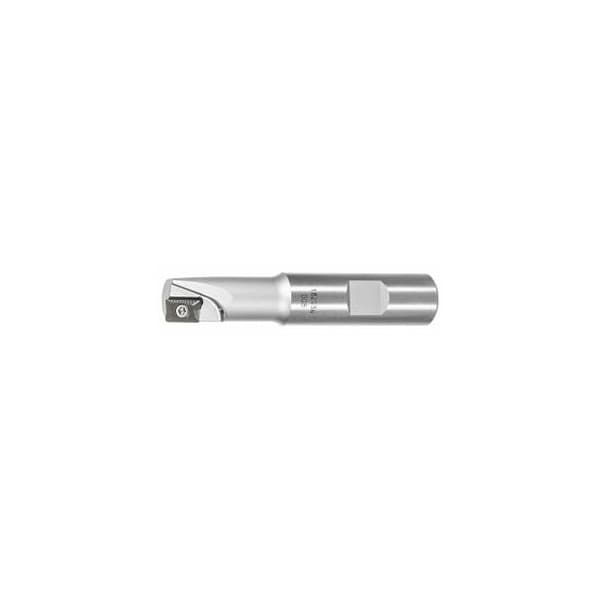

Square Shoulder Mill, with Weldon Flat, 14mm Diameter, 1 Inserts
Mfr # 215800 14/1
Zoro # G316121359
product price: $151.99
/ea
Free Shipping & Returns
Key Features
Shank Dia.
16 mm
Cutting Angle
90°
Cutting Dia.
14 mm
Insert Screw
219814 (8IP; 1.2 Nm)
Overall Length
85 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215800 14/1
Zoro #
G316121359
UPC #
-
Country of Origin
Italy
Dimensions
Shank Dia.
16 mm
Cutting Dia.
14 mm
Overall Length
85 mm
Ramping Length for αmax
9.25 mm
Diameter 3
11 mm
Details
Cutting Angle
90°
Insert Screw
219814 (8IP; 1.2 Nm)
Item
End / face mill
Fz Helix
0.5
Overhang
37 mm
Circular Interpolation Milling - Dmax
26.8 mm
Shank Type
Weldon shank
Axial Rake Angle
3°
Tool Exchange
PowerCard
Number of Teeth
1
Coolant Through
Yes
Dia/No. of Cutting Edges
14 mm/1
Ramping Angle
1.55°
Circular Interpolation Milling - Dmin
25 mm
Description
Application: Universal application in all materials. - Angle and slot milling- milling pockets- circular milling- bore milling- peripheral milling. Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. - Change the insert screws after longer use of the indexable inserts. Ensure the insert screws are well greased before use e.g. with copper paste. Cutting edgeDC: 14 mm Number of cutting edges Z: 1 Overhang L1: 37 mm Overall length Ltot: 85 mm ShankDs h6: 16 mm Circular interpolation millingDmin: 25 mm
