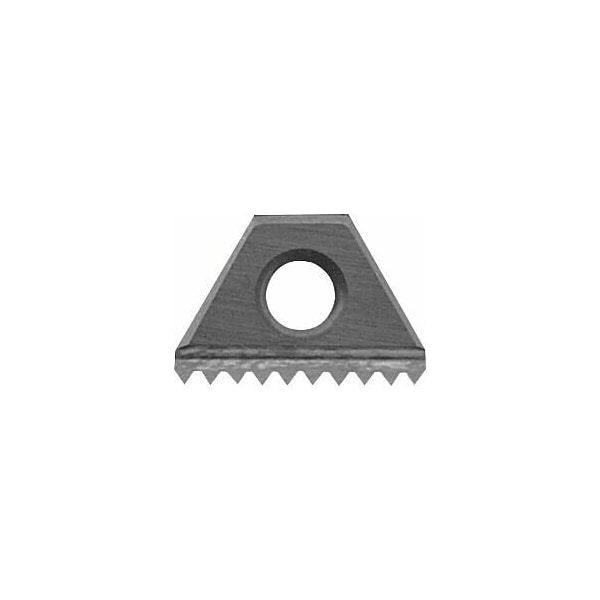

Thread Milling Insert for Internal/External Threads, 55 Degree, 11TPI
Mfr # 218024 11
Zoro # G816121491
product price:Â $147.99
/ea
Free Shipping & Returns
Key Features
Insert Size
27 mm
Grade
HB7720
Cutting Direction
right-hand and left-hand
Insert Material
Carbide
Thread Pitch
2,309 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 218024 11
- Zoro #
- G816121491
- UPC #
- -
- Country of Origin
- Israel
Dimensions
- Insert Size
- 27 mm
Details
- Item
- Cutter insert for milling
- Grade
- HB7720
- Cutting Direction
- right-hand and left-hand
- Insert Material
- Carbide
- Thread Pitch
- 2,309 mm
- Thread per Inch
- 11
- Thread profile
- Full profile
- Flank Angle
- 55°
- Correction Factor
- 2.5
- Full Profile
- Yes
- Number of Teeth
- 10
Description
Version: Sturdy inserts. Two usable edges. - Wide range of applications thanks to universal chip breaker geometry. - High repetition accuracy. Application: For internal and external threads 55 deg. to standard BS 84: 1956- DIN 259- ISO 228/1:1982. Tolerance medium- class A. Feed fz in INOX < 900 N/mm2: 0.05 mm
